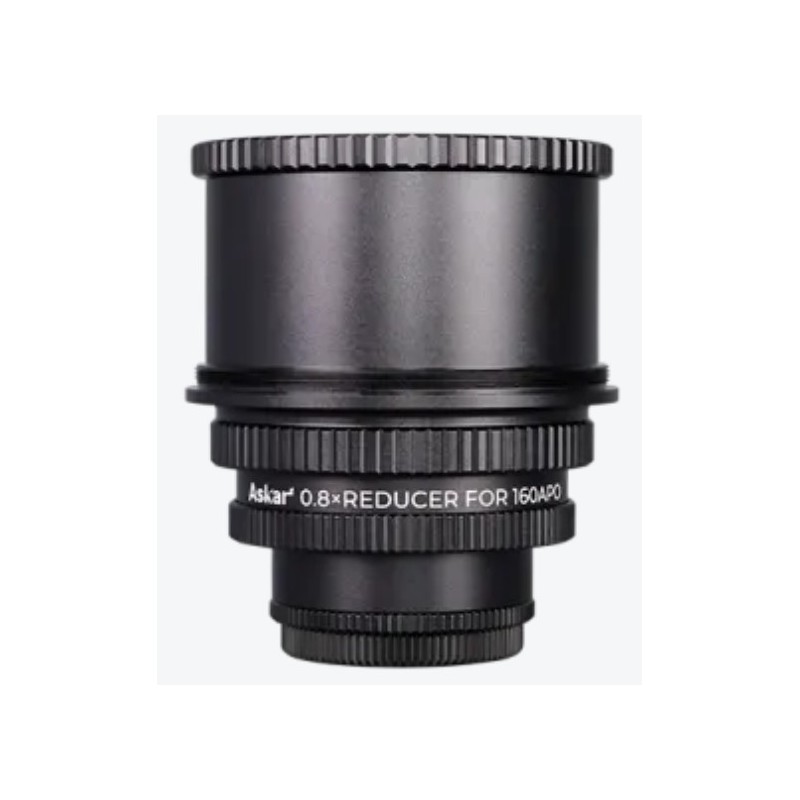

Askar 0.8x Full Frame Reducer for 160APO
The Askar 0.8x reducer for 160APO is a full-frame astrophotography accessory designed specifically for the Askar 160APO refractor. It reduces the focal ratio to f/5.6 while providing corrected field performance, delivering a wider field of view, shorter exposure times, and consistent image quality across the entire sensor.
Askar 0.8x Full Frame Reducer for 160APO
Description
The Askar 0.8x reducer for 160APO is engineered to fully exploit the optical performance of the Askar 160APO refractor. Once installed, it reduces the focal length to 896 mm and the focal ratio to f/5.6, offering a wider field of view and improved efficiency for deep-sky imaging.
Its quadruplet optical design ensures corrected field performance and minimizes aberrations across a full-frame 44 mm image circle. The standard 55 mm back focus measured from the base of the M48 male thread provides straightforward compatibility with most astronomy cameras.
The reducer features an M92x1 front thread and rear adapters in M68x1, M54x0.75, and M48x0.75 formats, with the latter including an internal 2-inch filter thread. The entire unit is CNC-machined and supplied with threaded metal caps to protect the optics when not in use.
Technical specifications
Compatibility: Askar 160APO
Reduction factor: 0.8x
Focal length after installation: 896 mm
Focal ratio after installation: f/5.6
Optical design: quadruplet
Image circle: 44 mm
Back focus: 55 mm from M48 male thread base
Front thread: M92x1
Rear threads: M68x1, M54x0.75, M54x0.75 to M48x0.75
Filter thread: internal M48x0.75 for 2-inch filters
Weight: 1.1 kg
Manufacturing: CNC machined
Protective caps: threaded metal front and rear
