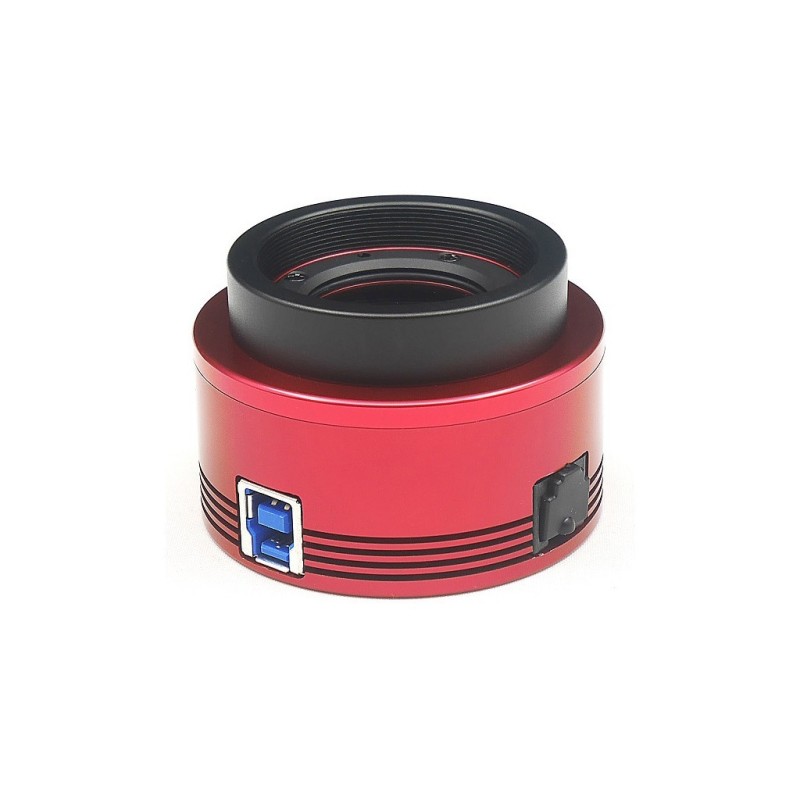

ZWO ASI183MM Monochrome Camera – USB 3.0

ZWO ASI183MM Monochrome Camera – USB 3.0

DESCRIPTION

The ZWO ASI183MM features a 1" monochrome sensor with 20.18 million pixels, ideal for planetary, lunar, white-light solar imaging, and short-exposure deep-sky work. Its very high sensitivity and extremely low read noise (1.6e) provide exceptional image quality. With 2.4 µm pixels and 12-bit ADC, it captures fine detail across a wide field of view.

The camera reaches 19 frames per second at full resolution (5496 x 3672) and up to 308 fps at lower resolutions (320 x 240, 10-bit), making it a powerful tool for freezing atmospheric turbulence or performing high-speed lucky imaging.

It includes a USB 3.0 interface for fast data transfer and a standard ST4 port for autoguiding. The high quantum efficiency (up to 84%) ensures excellent light detection, even in narrowband imaging such as H-alpha. The compact 2" body fits most telescope systems easily.

The T2 (M42x0.75) thread allows direct attachment to standard accessories. A 1.25" adapter is included for use with common eyepiece holders. All necessary cables are supplied.

TECHNICAL SPECIFICATIONS

• Sensor: 1" monochrome CMOS (20.18 MP)
• Resolution: 5496 x 3672 pixels
• Pixel size: 2.4 µm x 2.4 µm
• Sensor size: 13.19 mm x 8.81 mm
• Diagonal: 15.9 mm
• Exposure range: 32 µs to 33 min
• Max frame rate:
- 19 fps at full resolution
- 308 fps at 320 x 240 (10-bit)
• Read noise: 1.6e @ gain 30 dB
• ADC: 12 bit
• Backfocus: 6.5 mm
• Interface: USB 3.0 (compatible USB 2.0)
• Autoguiding port: ST4 compatible
• OS compatibility: Windows, macOS, Linux
• Weight: 120 g
• Barrel size: 2" / 1.25" / T2 thread
• USB cable length: 2 m
• Compatible software: FireCapture, SharpCap, Prism, OaCapture
• Cooling: passive (not cooled)
• Peak QE: 84 %
• Power: via USB
• Included accessories: USB 3.0 cable, ST4 cable, 1.25" adapter, dust caps, documentation
