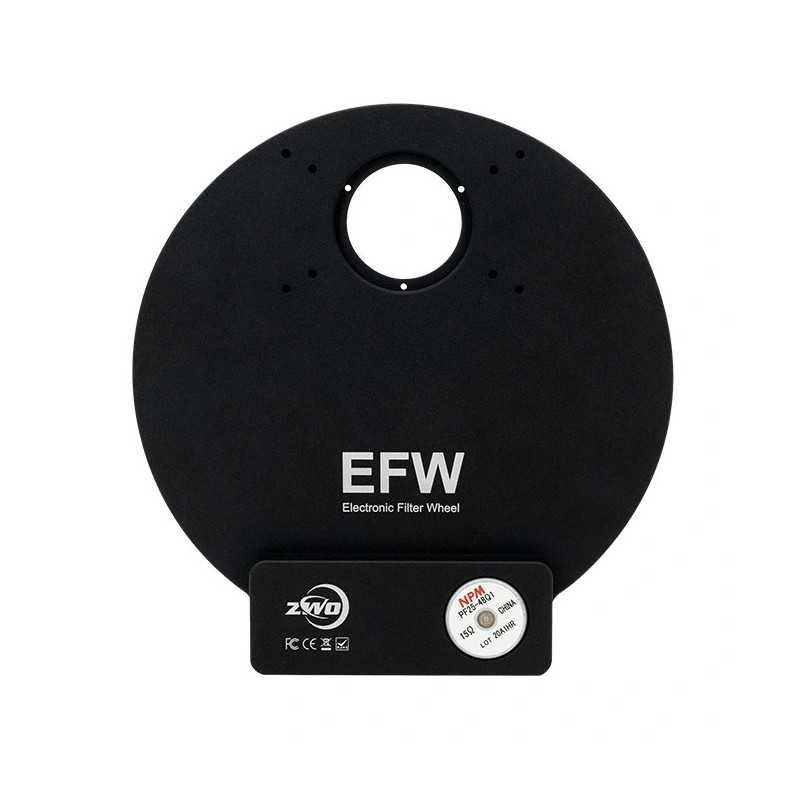

ZWO EFW electronic filter wheel 7x36-25

ZWO EFW electronic filter wheel 7x36-25

Description

The ZWO EFW 7x36-25 is part of the next-generation ZWO electronic filter wheels. Its internal structure has been refined to help eliminate light leakage, an important factor for deep-sky imaging during long exposures.

This model supports seven 36 mm filters. The body uses a CNC-machined aluminum alloy construction intended to provide a lighter, more rigid structure. The internal filter carousel is made from 6061 aluminum alloy to maintain strength and stability for reliable rotation.

The EFW 7x36-25 runs without an external power supply, drawing 120 mA at 5 V. It connects via the built-in USB-C port using the included USB 2.0 Type-A to Type-C cable. Control is supported through ASIAIR, ASIStudio, ASCOM, and the ZWO SDK. The design is presented as plug and play with no driver installation required.

Light-leak protection is reinforced through an upgraded sealing interface between covers, added light-blocking pads at lateral connection points, and a fully enclosed motor compartment, improving light isolation and environmental resistance. A high-precision stepper motor is used for stable, consistent operation across extended imaging sessions. Automated filter switching is supported when used with compatible control software such as ASIAIR.

Technical specifications

• Model: EFW 7x36-25

• Type: electronic filter wheel

• Use: astrophotography

• Supported filters: 36 mm

• Slots: 7

• Power: USB

• Current draw: 120 mA

• Voltage: 5 V

• Port: USB-C

• Included cable: USB 2.0 Type-A to Type-C

• Body material: CNC-machined aluminum alloy

• Carousel material: 6061 aluminum alloy

• Motor: high-precision stepper motor

• Light protection: sealing,blocking pads,enclosed motor

• Software support: ASIAIR,ASIStudio,ASCOM,SDK

• Mode: plug and play

• ZWO filter compatibility: yes
