Baader 3" Plate with V-Clamp and Stronghold
389.00
Tax included

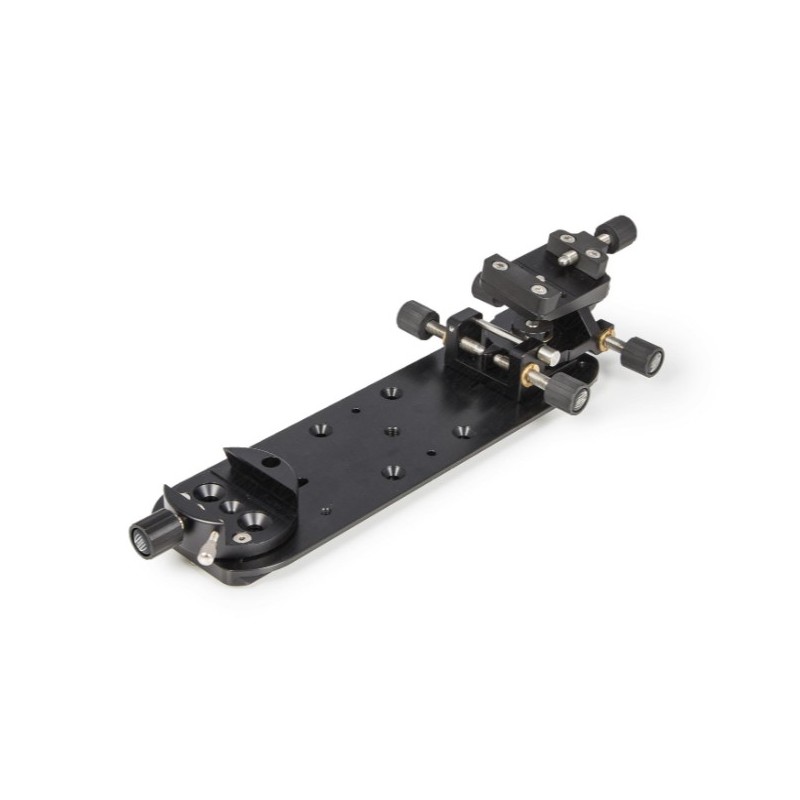

Baader 3" Plate with V-Clamp and Stronghold
Compact dual-mount plate with 3" base, Vixen clamp, and tangential adjuster
Baader 3" Plate with V-Clamp and Stronghold
Description
The Baader dual plate allows two telescopes with Vixen-style dovetails to be mounted on a single mount. The Stronghold Tangent Assembly enables precise parallel alignment between both OTAs—essential for astrophotography and scientific configurations.
Included:
300 mm base plate (ref. 1500330), Losmandy 3" compatible
70 mm Vixen clamp with locking screw (ref. 2451530)
Stronghold Tangent Assembly in black (ref. 2450310S), payload ~7 kg (photographic use)
It features multiple pre-drilled holes for 10Micron, Astro-Physics, and AP 13"/16" twin mounting plates. A central 3/8" photo thread is also available. The user can replace components with other clamps or guidescope rings from Baader’s range.
Technical specifications
Product name: Baader 3" Plate with V-Clamp and Stronghold
SKU: 1500350
Plate length: 300 mm
Width: 100 mm
Dovetail standard: Losmandy 3" (76 mm)
Dual mounting: Yes
Mounting hole compatibility: 10Micron, Astro-Physics, Baader
Center thread: 3/8" photo
Stronghold capacity: ~7 kg
Net weight: 1.30 kg
EAN code: 4047825039439
Manufacturer: Baader Planetarium
Screws included: Yes
