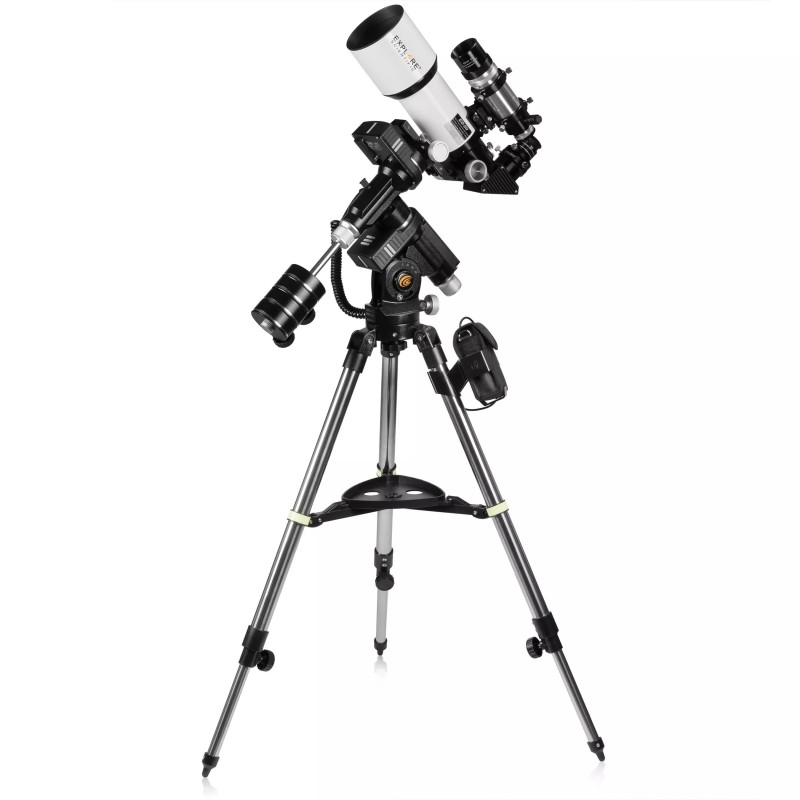

Explore Scientific ED80 APO iEXOS-100 PMC-Eight GoTo Telescope Set

Explore Scientific ED80 APO iEXOS-100 PMC-Eight GoTo Telescope Set

Description:

The Explore Scientific ED80 APO with iEXOS-100 PMC-Eight mount is a powerful telescope kit designed for astrophotographers and serious visual observers. The 80mm triplet air-spaced refractor uses premium Hoya FCD-1 ED glass, delivering excellent chromatic correction and sharpness across the field. The compact 480mm f/6 aluminium tube is lightweight and transportable, making it ideal for field use.

The precision 2" rack & pinion focuser with 1:10 micro-reduction provides stable focusing even with heavy accessories. A 2" mirror diagonal with 99% reflectivity and 1.25" adapter are included.

The iEXOS-100 equatorial GoTo mount features the advanced PMC-Eight™ control system with 8 independent processors, ensuring smooth operation and accurate tracking. It is controlled via Wi-Fi using the ExploreStars app (Windows, Android, iOS) or via ASCOM/INDI software from a PC. The intuitive dual- or triple-star alignment streamlines setup, while the polar sight tunnel and adjustable altitude/azimuth knobs ensure accurate polar alignment.

The mount’s belt-driven stepper motors operate silently and precisely. A stainless steel tripod provides stable support. Additional highlights include illuminated reticles, level bubble, and fluorescent markings for nighttime usability.

A full accessory kit is included: 8x50 illuminated finder, 20mm 62° eyepiece, 2" diagonal, 3x 1 kg counterweights, 12V battery holder (C-cell), and cabling.

Technical specifications:

Optical tube:

• Design: Air-spaced triplet ED apochromatic refractor
• Glass: Hoya FCD-1
• Aperture: 80 mm
• Focal length: 480 mm
• F-ratio: f/6
• Resolution: 1.6"
• Max magnification: 160x
• Optical coating: Enhanced Multi-Layer Deposition (EMD)
• Backfocus: 165 mm from focuser
• Tube length: 340 mm
• Tube weight: 2.6 kg
• Tube material: Aluminium

Focuser:

• Type: 2" rack & pinion with 1:10 micro-reduction
• Included accessories: 2" to 1.25" adapter
• Diagonal: 2" mirror, 99% reflectivity
• Dust caps: front and rear included

Mount:

• Type: iEXOS-100 GoTo equatorial
• Drive: belt-driven stepper motors
• Control system: PMC-Eight™ with 8 CPUs
• Interfaces: Wi-Fi, Mini-USB, ST4 guiding port
• Software: ExploreStars (Win/Android/iOS), ASCOM & INDI compatible
• Alignment: 2- or 3-star, polar tunnel sight
• Saddle: Vixen-style
• Payload: up to 5 kg
• Power: 12V (8x C-cell batteries, not included)
• Additional features: level bubble, fluorescent accents

Tripod:

• Material: stainless steel
• Adjustable height: no
• Tripod weight: 2.5 kg
• Mount head weight: 4.0 kg

Additional information:

Supplied with optical tube, PMC-Eight iEXOS-100 GoTo mount, stainless steel tripod, 2" diagonal, 20 mm 62° eyepiece, 8x50 illuminated finder, dovetail bar (Vixen), dust caps, 3x 1 kg counterweights, 12V battery holder (C-cells not included), motor cable, ExploreStars software (free download). 10-year limited warranty after registration.
