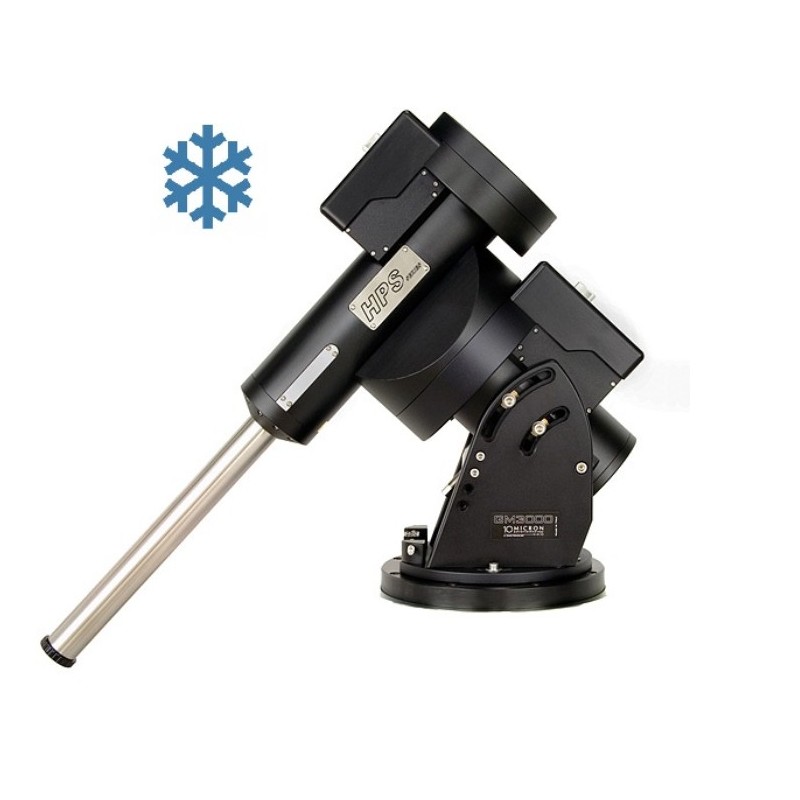

10Micron GM 3000 HPS GoTo-Mount incl. ColdTemp Upgrade (1453000C)

10Micron GM 3000 HPS GoTo-Mount incl. ColdTemp Upgrade (1453000C)

Description

The 10Micron GM 3000 HPS is designed for high-end observatories requiring excellent stability and precision at high payload capacity. The mount reaches up to 12°/s satellite tracking speed, with typical pointing accuracy under 20 arcseconds and tracking accuracy of ~1" over 15 minutes (peak-to-peak).

High-resolution absolute encoders directly mounted on RA and Dec axes ensure the mount never loses orientation—even after power outages or manual movement. No realignment is necessary. The dual-axis tracking system compensates automatically for polar alignment errors or tube flexures during tracking.

This version includes the ColdTemp Upgrade, factory-installed and not retrofittable. It includes:

• Ultra-low-viscosity grease for −60 °C operation,

• Axis thermal compensation springs,

• Embedded Linux PC with extended temperature range,

• Fully replaced internal cabling with low-temp copper alloy + silicone jacket,

• Absolute encoders modified for −40 °C,

• Cold chamber endurance testing

Wi-Fi functionality is disabled in ColdTemp versions.

The V3 control box features:

• ARM-based processor

• Binder industrial connectors for all ports

• GPS input via PS2 with PPS signal

• Enhanced AUX port (DIN 6-pin)

• Binder power plug with 24V cable

• External Wi-Fi antenna port (disabled in ColdTemp)

The system runs Linux and supports full autonomous or remote control via Ethernet. It is operated locally via the included stand-alone Keypad or remotely via Virtual Keypad, ASCOM drivers, Clock Sync and Multi Mount software.

Advanced firmware includes high-precision multistar modeling, dual-axis tracking, assisted polar alignment, spectroscopy-ready pointing models, satellite TLE tracking, and full time synchronization (manual, GPS, or software). UT1/UTC handling and leap second support are integrated.

Technical specifications

• Mount type: German equatorial

• Instrument load capacity: 100 kg

• Weight: approx. 65 kg

• Latitude range: 20° to 70°

• Azimuth adjustment: ±10°

• Counterweight shaft: Ø50 mm, stainless steel, 8 kg

• Axes: Ø80 mm RA / Ø50 mm DEC, alloy steel

• Bearings: Pre-loaded tapered roller

• Worm wheels: RA 315 teeth, Ø330 mm / DEC 250 teeth, Ø192 mm, B14 bronze

• Worms: Ø32 mm, tempered, ground and lapped steel

• Motors: 2 AC brushless servos

• Power: 24 V DC

• Power draw: ~1 A (tracking), ~3 A (max speed), ~5 A (peak)

• Go-To speed: 2°/s to 12°/s

• Transmission: backlash-free with belt and auto-compensation

• Pointing accuracy: <20" with 25-star mapping (up to 100)

• Tracking accuracy: ~1" over 15 min; ~0.6" RMS with full model

• Safety stops: ±30° (software) / ±45° (mechanical) past meridian

• Ports: RS-232, GPS, ST-4, Ethernet 10/100/1000

• Database: named stars, deep-sky objects, solar system, comets, satellites, user objects

• Firmware: parking, 2/3-star alignment, up to 100 points, polar/orthogonality correction, sidereal/solar/lunar tracking, guiding speed based on declination, adjustable horizon, meridian flips, balance routine, GPS/ClockSync/manual timing, Baader dome control, multilingual, remote diagnostics

• Keypad: robust metal housing, 5-line heated graphic display, LED-backlit keys

• PC control: via RS-232 or Ethernet, ASCOM 10Micron, LX200-compatible, firmware/orbital updates

Additional information

• Supplied with on-axis absolute encoders

• Mandatory shipping kit with pier adapter and wooden box (#1453199)

• Stand-alone Keypad included (#1452061)

• Counterweights and power supply must be ordered separately

• Only approved 10Micron power supplies maintain warranty coverage
