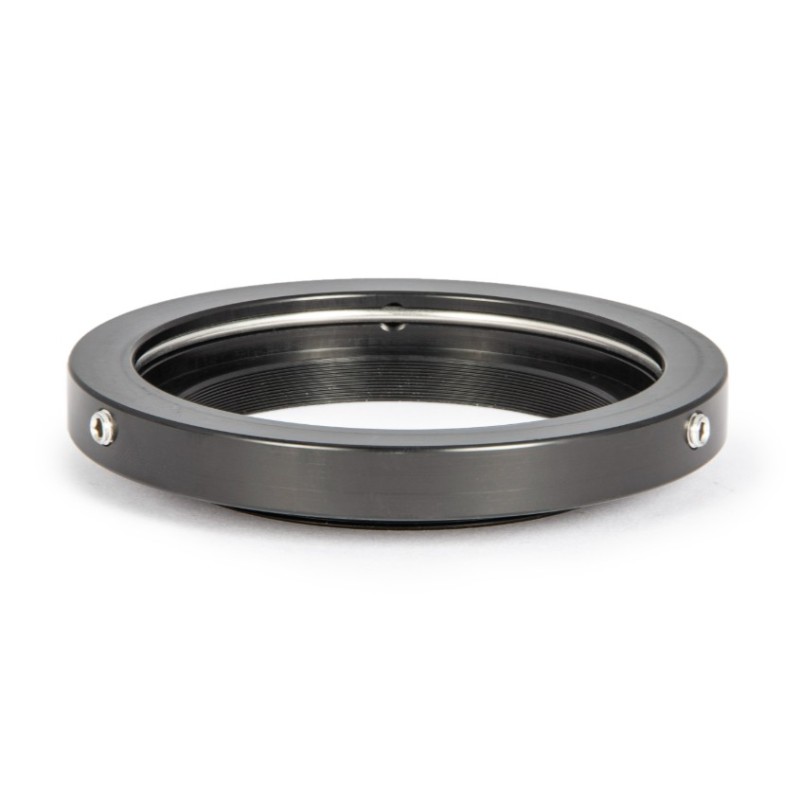

Baader Adapter S74.3i to M68a – for FLI Cameras

Baader Adapter S74.3i to M68a – for FLI Cameras

Description

The Baader S74.3i to M68a adapter allows direct connection of FLI ML or PL series cameras to the Baader-Zeiss M68 optical system. On the telescope side, the adapter features a male M68 x 1 thread, compatible with all parts of the Baader/Zeiss M68 system. On the camera side, it interfaces precisely with the mounting base used on FLI cameras.

Its optimized mechanical design ensures axial alignment and secure centering. The 64 mm clear aperture provides full illumination of large-format sensors without vignetting. With a very short optical length of 10.5 mm, it is ideal for setups with tight backfocus requirements.

Technical specifications

• Adapter type: mechanical adapter for FLI cameras

• Telescope connection: M68 x 1 male thread (Zeiss standard)

• Camera connection: S74.3i interface for FLI ML/PL

• Optical length: 10.5 mm

• Clear aperture: 64 mm

• Outer diameter: 93 mm

• Weight: 0.08 kg

• Manufacturer: Baader Planetarium

• Product code: 2458219

• EAN: 4047825041333
