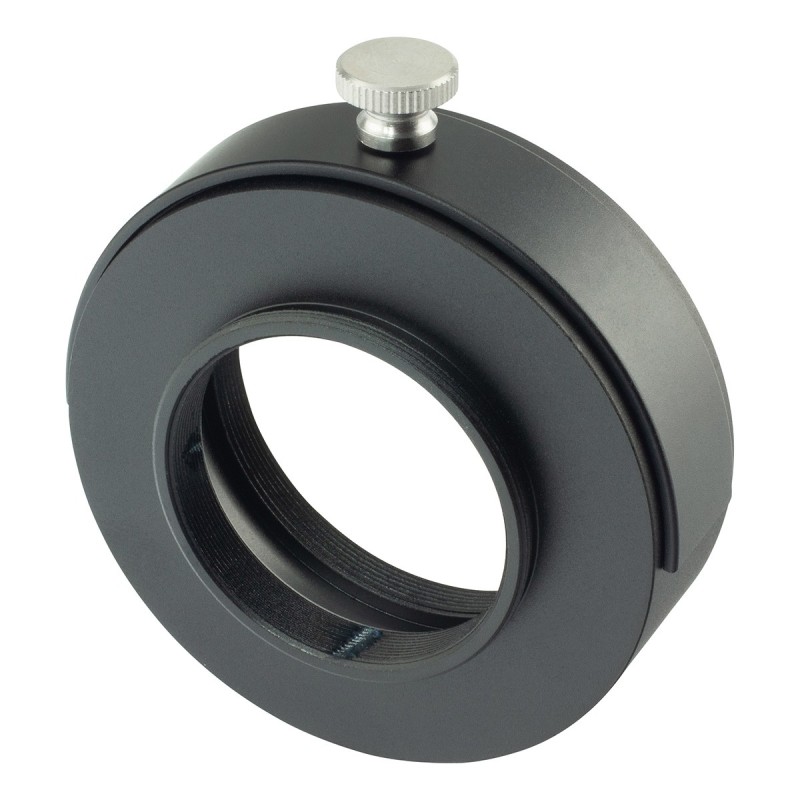

ZWO 2" Filter Drawer with M42/M48 Adapters

ZWO 2" Filter Drawer with M42/M48 Adapters

DESCRIPTION

This ZWO filter drawer is designed to hold 2" mounted filters and comes with both M42 and M48 adapters. The drawer attaches magnetically, making filter swaps fast and secure. The included M42x0.75 and M48x0.75 threaded adapters allow direct connection to a wide range of ZWO cameras and lenses or accessories. Perfect for compact imaging setups where flexibility and speed matter, it’s a great addition for anyone using filters in the field.

TECHNICAL SPECIFICATIONS

• Type : drawer for 2" mounted filters

• Threads : includes M42x0.75 and M48x0.75 adapters

• Filter compatibility : standard 2" (50.8 mm) filters

• Material : anodized black aluminum

• Locking : magnetic drawer mechanism

• Included : drawer, M42 & M48 adapters, screws, Allen key

• Use : astrophotography with cameras and lenses

Double strong magnets adopted for stronger adsorption, easier installation and pulling out.

 Lock screw on the side for you to adjust the tension of the holder to eliminate gap. Double insurance.

The differences between the old and new filter drawer

What’s in the Box?

M42 filter drawer:FILTER  drawer *1M48-M42F adapter *1

Mechanical Diagram

M42 filter drawer:

Diameter 70mm * Thickness 21mmM42 * 0.75 male(external) thread (camera side)M48 * 0.75 female(internal) thread (filter end)M48 * 0.75 female(internal) thread (telescope side)

Suitable for 2-inch astronomical filters。
