Baader UFC S70a to M54i Telescope Adapter – Optical height 1.5 mm
25.00
Tax included
Baader UFC S70a to M54i Telescope Adapter – Optical height 1.5 mm
Baader UFC adapter S70a to internal M54 thread. Optical height 1.5 mm. Allows integration of the UFC filter system instead of M54 filter wheels on many cameras with M54 x 0.75 thread.
Baader UFC S70a to M54i Telescope Adapter – Optical height 1.5 mm
Description

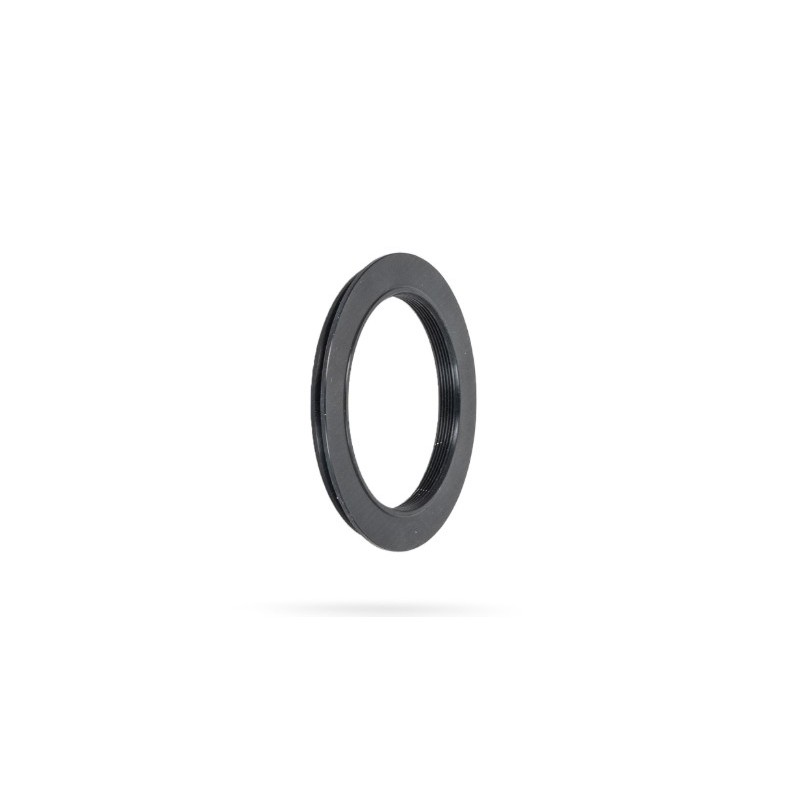

The Baader UFC S70a to M54i adapter provides a compact and precise mechanical interface for connecting the UFC system to a telescope or camera with an M54 x 0.75 female thread.
On the telescope side, it offers an internal M54 x 0.75 thread. On the UFC side, it uses the standard S70 dovetail connection, enabling attachment to the UFC Base (filter chamber, #2459110, optical height 13 mm) or any other S70 UFC extensions.
Its very short optical length of 1.5 mm makes it ideal for setups where backfocus is limited.
To replace an M54 filter wheel with the UFC system on a camera with an M54 thread, the following accessories are also required:
UFC Base (filter chamber, #2459110)
UFC M54a Camera Adapter – optical height 2 mm (#2459117)
Specifications
| Attribute | Value |
|---|---|
| SKU | 2459171 |
| EAN Code | 4047825051882 |
| Manufacturer | Baader Planetarium |
| Adapter type | Mechanical adapter S70 to M54 |
| Telescope thread | M54 x 0.75 female |
| UFC interface | S70 dovetail |
| Inner diameter / Clear aperture | 51 mm |
| Outer diameter | 72 mm |
| Optical height | 1.5 mm |
| Net weight | 0.02 kg |
Additional info
Fully compatible with all Baader UFC extensions.
Made in Germany by Baader Planetarium.
