Baader UFC ASI/T-2i Camera Adapter – Optical height 8.5 mm
36.00
Tax included
Baader UFC ASI/T-2i Camera Adapter – Optical height 8.5 mm
UFC adapter with T-2 female thread, designed for ASI cameras with 6.5 mm backfocus and T-2 male thread. Optical height 8.5 mm. Fits UFC Base via mounting plate.
Baader UFC ASI/T-2i Camera Adapter – Optical height 8.5 mm
Description

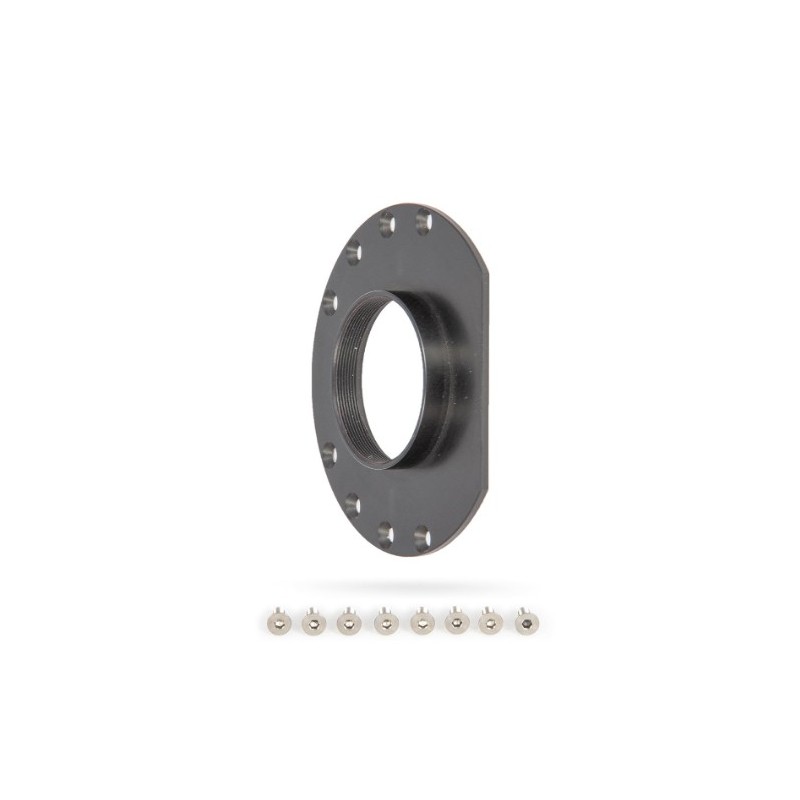

The Baader UFC ASI/T-2i adapter is used to attach ASI cameras with a T-2 male thread and 6.5 mm backfocus to the Baader UFC system. It provides a stable and precisely aligned interface.
The camera side features a T-2 female thread (M42 x 0.75), intended for use with ASI cameras where the internal T-2 ring has been removed. On the UFC side, the adapter attaches to the UFC Base filter chamber (#2459110) using the included screws and mounting plate.
With an optical height of 8.5 mm, it ensures optimal spacing in demanding astrophotography setups.
Specifications
| Attribute | Value |
|---|---|
| SKU | 2459170 |
| EAN Code | 4047825048387 |
| Manufacturer | Baader Planetarium |
| Adapter type | UFC camera adapter |
| Camera thread | T-2 female (M42 x 0.75) |
| UFC interface | Mounting plate for UFC Base |
| Compatible cameras | ASI with T-2 male thread and 6.5 mm backfocus |
| Optical height | 8.5 mm |
| Outer diameter | 89 mm |
| Net weight | 0.03 kg |
Additional info
Requires UFC Base filter chamber (#2459110).
Original ASI T-2 thread ring must be removed.
Manufactured by Baader Planetarium in Germany.
