UFC Baader to M48 female thread
23.00
Tax included
UFC Baader to M48 female thread
Telescope adapter for the Baader UFC system with M48 female thread. Optical height 1 mm. Mechanical S70 interface. Direct connection to the UFC Base.
UFC Baader to M48 female thread
Description

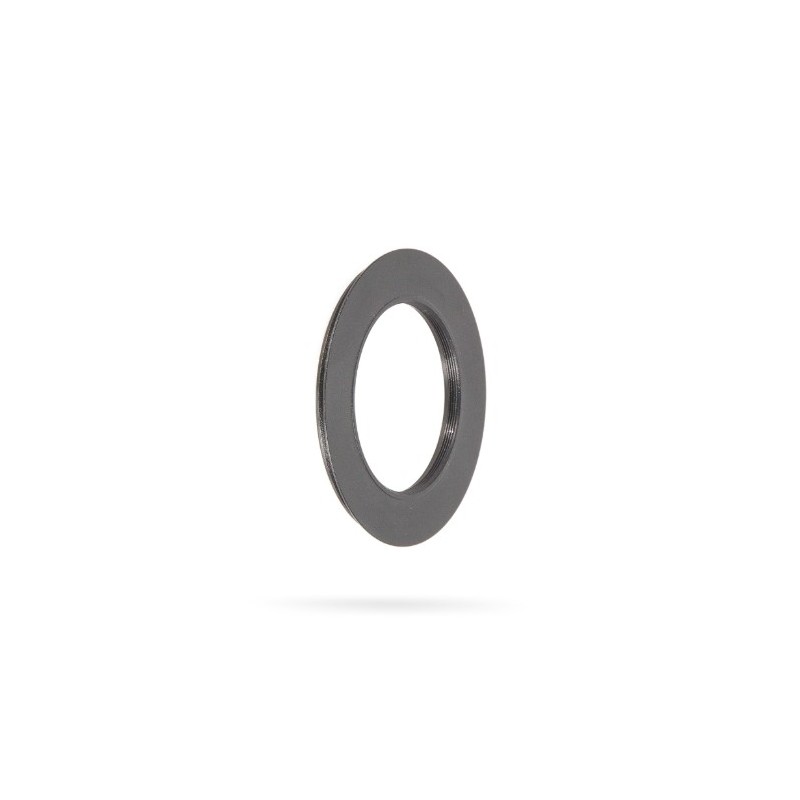

The Baader UFC S70a to M48 female adapter allows direct connection of accessories or correctors featuring a M48 x 0.75 mm inner thread to the Baader UFC system. With a minimal optical height of just 1 mm, it is ideal for optical trains requiring extremely short backfocus, such as f/2 systems.
The telescope side features a standard M48 female thread. The camera side provides a S70 dovetail profile compatible with the UFC Base (#2459110) or S70 extension rings. Mechanical fastening is ensured via included screws and the S70 clamping system.
This adapter is designed to provide a rigid, precise connection, maintaining alignment under load. It is ideal for astrophotographers seeking M48 compatibility within Baader’s modular UFC system.
Technical specifications
Telescope connection: M48 x 0.75 mm (female)
Optical height: 1 mm
Camera-side interface: S70 dovetail
Clear aperture: 47 mm
Outer diameter: 75 mm
Net weight: 0.03 kg
Adapter type: expanding adapter
Manufacturer: Baader Planetarium
SKU: 2459129
EAN: 4047825033697
