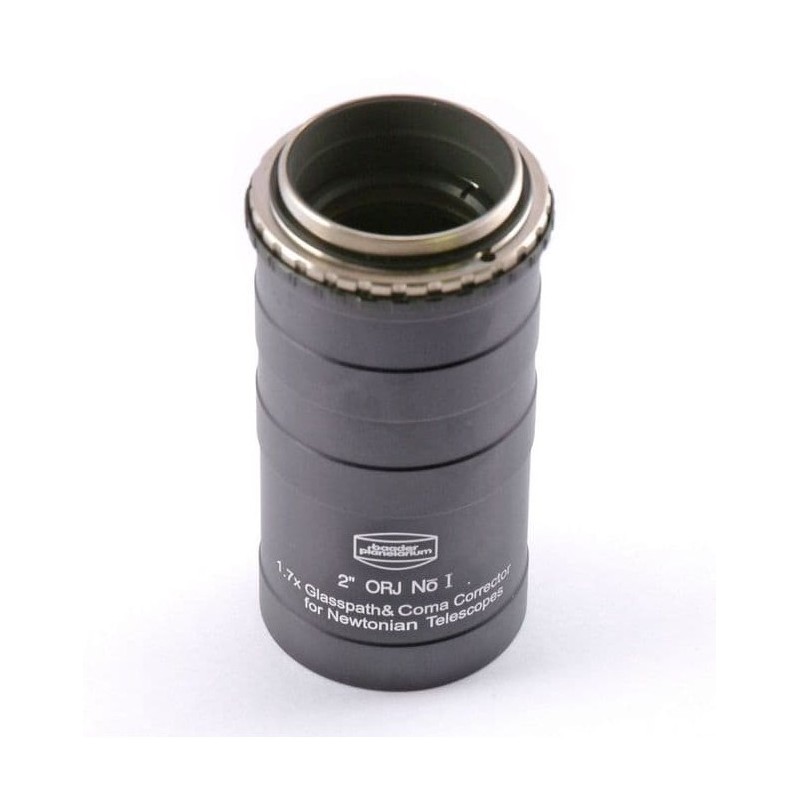

Baader 1.7x Glasspath Corrector for Newtonian

Baader 1.7x Glasspath Corrector for Newtonian

DESCRIPTION
The Baader 1.7x glasspath corrector for Newtonian reflectors is specially developed to enable binoviewer use on Newton telescopes. Featuring a full 2" optical path and an integrated coma corrector, it fits directly into Baader’s Maxbright II and Mark V binoviewers via its 2" barrel and M48 filter thread.

This corrector is not a standard Barlow lens. Its main purpose is to correct chromatic aberration introduced by the prisms in binoviewers while also restoring contrast and sharpness. Additionally, the coma corrector ensures clean, coma-free views across the field of view when used with fast Newtonians.

Delivered ready for use with the Mark V binoviewer, the T-2a adapter ring with Zeiss-style dovetail (#2456320) is required for use with Maxbright. Dobsonian users should ensure a backfocus of at least 25 mm.

TECHNICAL SHEET
• Magnification: 1.7x
• Compatible telescopes: Newtonian
• Compatible with: Baader Maxbright II and Mark V
• Insertion diameter: 2" (50.8 mm)
• Threading: M48
• Coma corrector: included
• Outer diameter: 54 mm
• Net weight: 0.26 kg
• Product reference: 2456300
