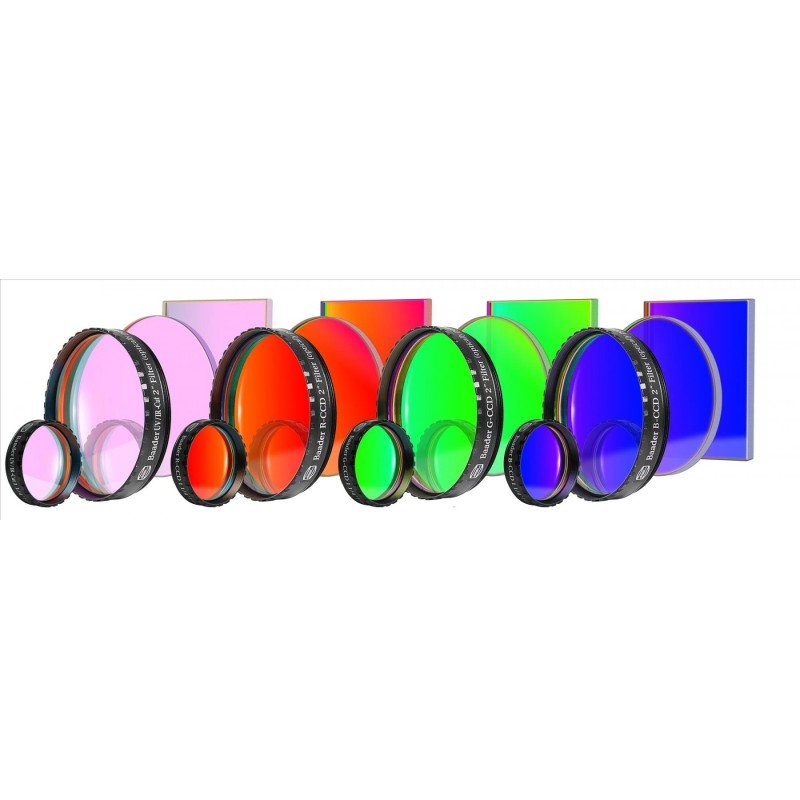

Baader LRGB 2" Filter Set – CMOS Optimized

Baader LRGB 2" Filter Set – CMOS Optimized

DESCRIPTION
The Baader 2" LRGB filter set is tailored for use with modern CMOS sensors. It includes red, green, and blue passband filters, plus a luminance filter (UV/IR cut) transmitting 98% from 420 to 685 nm. The RGB filters feature extremely high transmission in their color channels while efficiently blocking unwanted light and reflections. Each filter is finely plano-optically polished and sealed with hard Reflex-Blocker™ coatings (Life-Coat™). The spectral design allows identical exposure times across all channels—ideal for fully automated imaging sessions. Filters are mounted in low-profile LPFC 6 mm cells, with blackened edges and telescope-facing markings to suppress lateral light reflections.

TECHNICAL SPECIFICATIONS

• Filter type: Luminance, Red, Green, Blue (bandpass)

• Luminance transmission: 98% from 420 – 685 nm

• Passbands:
  - Red (R): 595 – 690 nm
  - Green (G): 490 – 580 nm
  - Blue (B): 400 – 510 nm

• Filter thickness (without cell): 2 mm

• Diameter: 2" (50 mm)

• Shape: round, mounted (LPFC cell, 6 mm)

• Aperture compatibility: f/15 to f/1.8

• Optimization: CMOS / CCD cameras

• Coatings: Reflex-Blocker™, Life-Coat™

• Features:
  - Blackened edges
  - Front-facing indication (telescope side)
  - Plano-optical polishing

• Weight: 0.05 kg

• SKU: 2961613

• EAN: 4047825049629

• Manufacturer: Baader Planetarium
