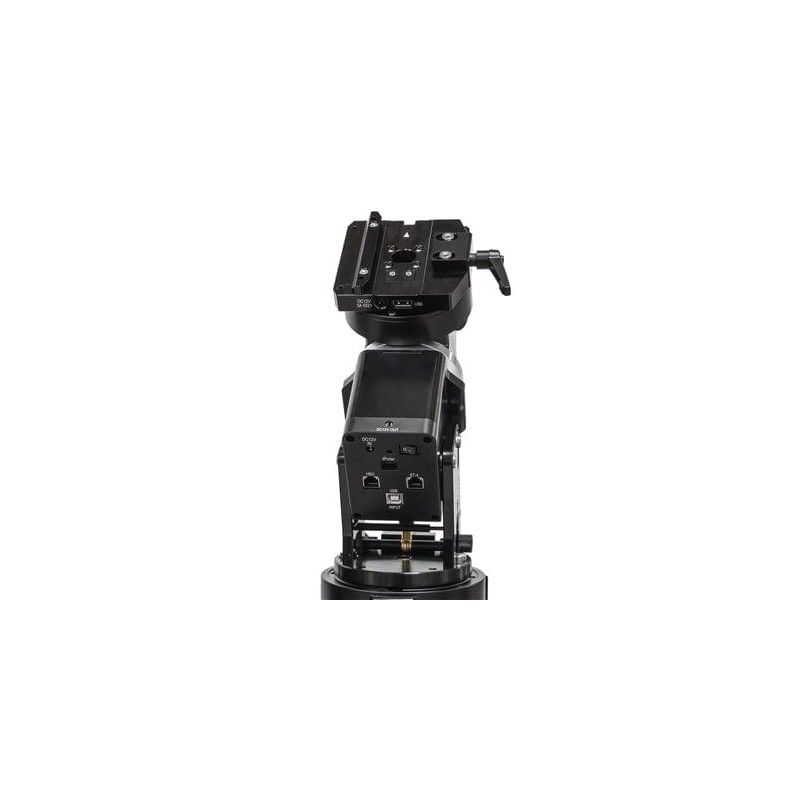

iOptron HEM44 Hybrid Equatorial Mount with iPolar

iOptron HEM44 Hybrid Equatorial Mount with iPolar

Description:
The iOptron HEM44 Hybrid Equatorial Mount marks a new generation of compact harmonic drive systems. With a mount head weighing only 6.2 kg, it supports an impressive 20 kg payload capacity — no counterweights required — making it ideal for portable astrophotography setups.

The RA axis relies on advanced strain wave gear technology, while the DEC axis uses a backlash-free worm/belt system. Its black anodized CNC-machined metal body provides rugged durability for long-term high-precision use.

The HEM44 features an electronic friction brake and power-down memory, allowing safe interruption and resumption of tracking or GoTo operations without needing realignment. Included is the iPolar electronic polar scope, enabling easy and accurate polar alignment—even in polar-star-obstructed skies.

The mount is compatible with ASCOM/Commander (Windows), INDI (macOS/Linux/Raspberry Pi), SkySafari, and ZWO’s ASIAIR platform. Cable management is fully internal, reducing snagging risks during operation.

Technical specifications:
– Mount type: hybrid harmonic equatorial
– Drive: harmonic RA / worm+belt DEC
– Payload capacity: 20 kg (no counterweight)
– Mount head weight: 6.2 kg
– Polar scope: iOptron iPolar electronic included
– Body: CNC machined anodized metal
– Gear period: 270 seconds
– Interfaces: ST4, USB, Wi-Fi (via Go2Nova hand controller)
– Go2Nova hand controller with ~212,000 object database
– Dovetail compatibility: Vixen and Losmandy
– Built-in zero position and memory
– Power supply: DC 12V / 5A
– Warranty: 2 years
– Soft carrying case included

Additional information:
A special low-latitude version (0–22°) is available on request. The HEM44EC version features a high-precision encoder on the RA axis for imaging without guiding.
