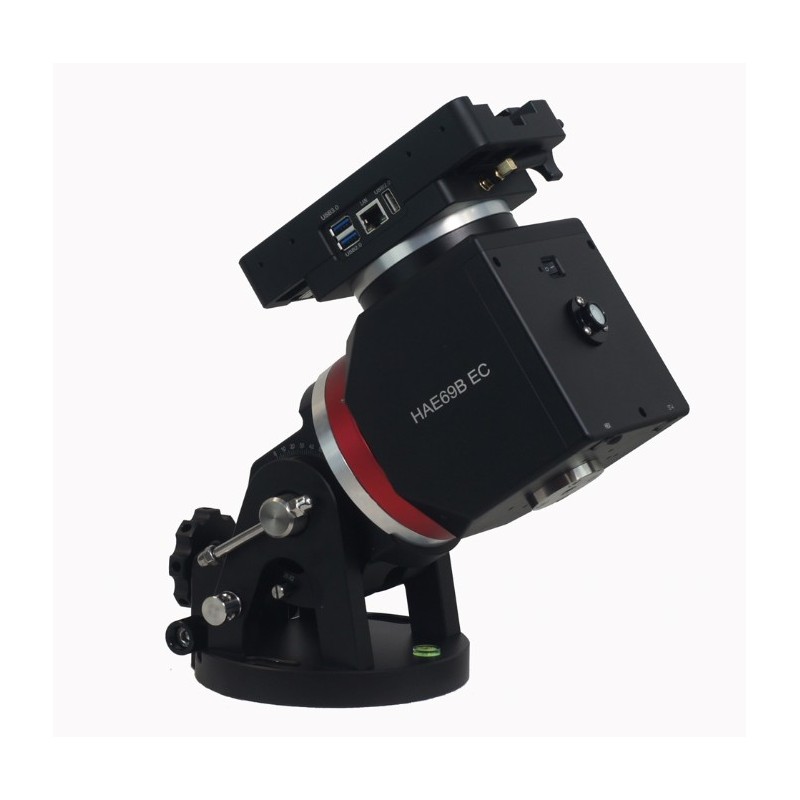

iOptron HAE69B EC AZ/EQ SWG with iMate

iOptron HAE69B EC AZ/EQ SWG with iMate

Description

The iOptron HAE69B EC AZ/EQ SWG with iMate is a hybrid Alt-Az and Equatorial mount built with advanced Strain Wave Gear technology for both RA and DEC axes. It delivers exceptional stability, smooth tracking and accuracy for demanding imaging tasks.
With a payload capacity of 31 kg (69 lb) and a weight of 9 kg (19.8 lb), it offers a remarkable payload-to-weight ratio and eliminates the need for counterweights. The mount’s CNC-machined black anodized aluminum structure ensures rigidity and durability for years of operation.
The integrated iMate computer features a 64-bit ARM processor, preloaded with KStars, Ekos and INDI drivers, providing a complete control and automation environment. It supports a wide range of imaging devices such as cameras, focusers and filter wheels.
Equipped with 32 GB of eMMC storage and a micro-SD slot (up to 64 GB), the system can manage a fully automated imaging session without external computers. Three 12 V DC outputs, two USB 2.0 and one USB 3.0 port simplify connection and power distribution.
The HAE69B EC includes an electronic friction brake, built-in ST-4 autoguide port, dual Vixen/Losmandy-D saddle, and automatic zero-position search. Handset and iPolar scope are optional.
It is an ideal mount for astrophotographers and observers seeking high precision, portability and autonomous operation.

Technical Specifications

• Type: Strain Wave Gear Alt-Az/Equatorial mount

• Payload capacity: 31 kg (69 lb) without counterweight

• Mount weight: 9 kg (19.8 lb) including saddle

• Payload/mount ratio: 3.44

• Reduction ratio: RA 800:1 / DEC 800:1

• Gear period: 270 s

• Encoder: Yes (RA axis, real-time PEC)

• Motor: Stepper motor

• Structure: CNC-machined aluminum, all-metal

• Finish: Black anodized

• Brake: Electronic friction brake

• Control: Built-in iMate computer / Commander / ASCOM / INDI

• Handset: Optional (Go2Nova 8411 OLED)

• Polar scope: Optional (iPolar electronic)

• iMate ports: 3 × 12 V DC, 2 × USB 2.0, 1 × USB 3.0

• Communication: USB and Wi-Fi

• Autoguide port: ST-4 compatible

• Saddle: Dual Vixen / Losmandy-D

• Power supply: 12 V DC, 6 A (5.5 / 2.1 mm plug)

• AC adapter: 100 – 240 V included (indoor use)

• Power consumption: 1 A (tracking), 1.6 A (GoTo)

• Max slew speed: 4.5°/s

• Azimuth adjustment: ± 8°

• Latitude adjustment: 0° – 90°

• Operating temperature: –20 °C to +40 °C

• Accessories: Aluminum carrying case

• Warranty: 2 years
