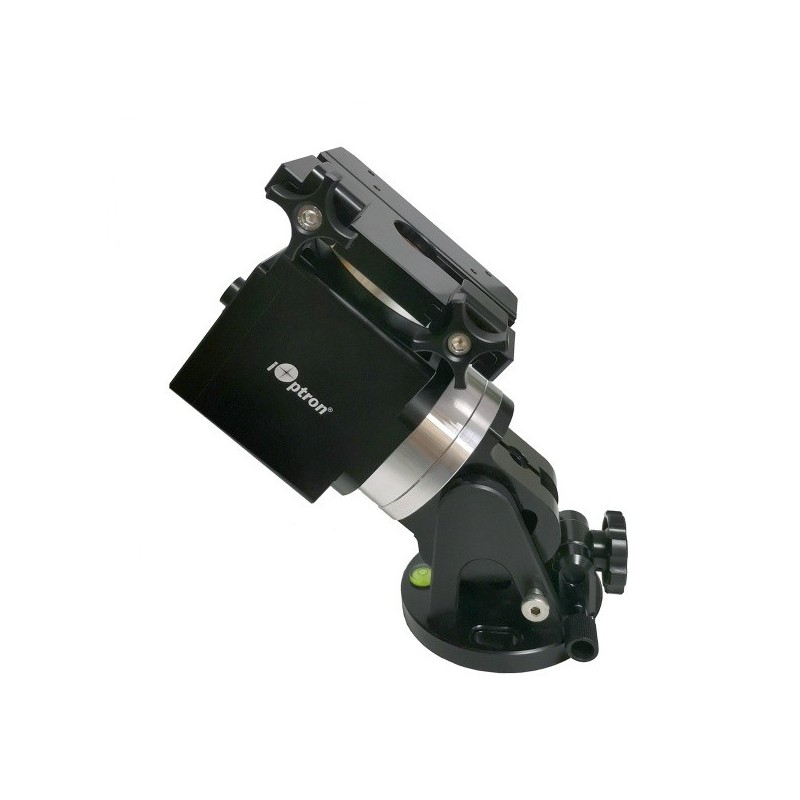

iOptron HAE29C AZ/EQ dual SWG with iPolar (Ref. HE292C)

iOptron HAE29C AZ/EQ dual SWG with iPolar (Ref. HE292C)

Description:
The HAE29C with iPolar offers an ideal solution for mobile astrophotographers seeking compactness, performance, and digital precision. With strain wave gear on both axes, the mount delivers smooth, backlash-free tracking and reduced mechanical complexity.

The included iPolar electronic polar scope allows for fast, computer-assisted alignment without the need for a traditional optical finder. Control is handled entirely via USB or Wi-Fi—no hand controller is required. The mount supports up to 13.5 kg without counterweights, or 18 kg with optional shaft and weights.

This version does not include a RA axis encoder, distinguishing it from the EC model. It is still highly suitable for portable imaging setups.

Technical specifications:

• Mount: Strain Wave Altazimuth / Equatorial Mount

• RA gear system: Strain Wave Gear

• DEC gear system: Strain Wave Gear

• Reduction ratio: RA 480:1, DEC 360:1

• Payload w/o CW: 29.7 lbs (13.5 kg)

• Mount weight: 8.15 lbs (3.7 kg with dovetail saddle)

• Payload / Mount weight: 3.65

• Payload with CW*: 40 lbs (18 kg)

• Period: 360 second

• PE: < 36 arcsec (< ± 18 arcsec)

• Drive motor: Stepper motor

• Structure Material: All metal, CNC machined

• Exterior finish: Anodized black

• Level indicator: Level bubble

• Control system: GOTONOVA / Commander

• Handset: Not included

• Tracking: Automatic

• Maximum slew speed: 6°/sec

• Power consumption: 0.6A (Tracking), 1A (GOTO)

• Power: DC12V–5A (5.5/2.1mm DC plug)

• AC adapter: 100V ~ 240V (included, indoor use only)

• Power off brake: Electronic friction brake

• Wi-Fi: Built-in

• Communication port: Yes (Wi-Fi and USB)

• Autoguide port: Yes (ST–4 compatible)

• Firmware upgrade: Yes

• Dovetail saddle: Vixen & Losmandy

• Tripod: Optional

• Counterweight Shaft: SS Ø20x200mm, 3/8"-16 thread (Optional)

• Counterweight: 10 lbs (4.5 kg) (Optional)

• Operating temperature: –20°C ~ +45°C

• Warranty: Two year limited

Additional information:
The iPolar module enables precise polar alignment via PC without needing a hand controller. The mount is ideal for lightweight setups using refractors up to 115 mm or compact Newtonians. Compatible with iOptron MiniPier, Tri-Pier, and LiteRoc tripods. The Polar Align routine can also be accessed through iOptron Commander.
