DETAILS:

High-Precision Guiding for Pinpoint Stars

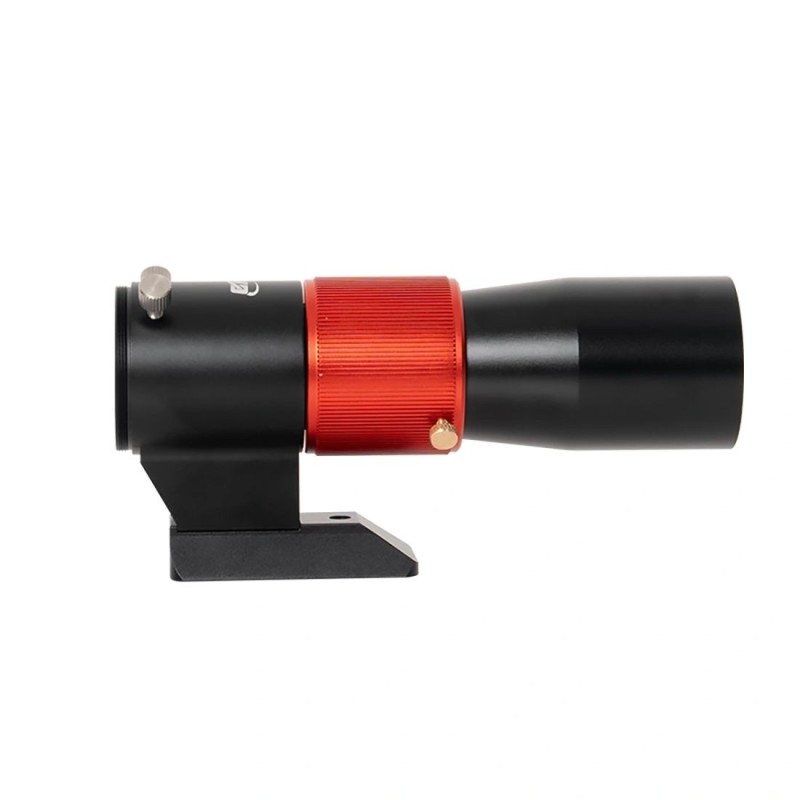

The ZWO 30mm F/5 APO Guide Scope is designed for exceptional guiding accuracy and stable tracking performance. This lightweight and streamlined guide scope ensures precise star tracking, enhancing the overall imaging experience.

Key Upgrades for Superior Guiding Performance

The latest generation of the ZWO 30mm F/5 APO Guide Scope introduces five significant improvements to address common guiding challenges:

• Enhanced Precision Focusing Mechanism – Upgraded focus knob with positioning screws to eliminate focus shift.

• Extended Focal Length – Increased to 150mm for improved guide star sharpness.

• Optimised APO Optical System – Three-element apochromatic design with ED glass ensures a more accurate optical path.

• Refined Aesthetic and Build – A sleek new design enhances both functionality and appearance.

• Enhanced Compatibility & Ease of Installation – Designed for effortless integration with a wide range of setups.

Professional-Grade Apochromatic Optics

The ZWO 30mm F/5 Guide Scope incorporates a premium apochromatic (APO) optical system with built-in ED glass, effectively minimising chromatic aberration and ensuring high-contrast, pinpoint stars.

Superior Guiding Performance

With an upgraded focal length of 150mm, the 30mm F/5 guide scope delivers sharper and more stable guide star images, significantly improving tracking accuracy compared to its predecessor.

Precision Focusing & Rigid Structure

• 20mm Travel Focusing Knob – Enables precise focus adjustments, with locking screws to maintain focus stability.

• Integrated Holder – Enhances structural rigidity for secure mounting.

• Quick-Release Dovetail Plate – Allows fast and convenient installation.

Usage Instructions

1. Install the guide scope and loosen the locking screws.

2. Adjust the focus knob clockwise or counterclockwise until the image becomes sharp.

3. Tighten the locking screws to secure the focus position.



Mechanical Drawing

Specifications
