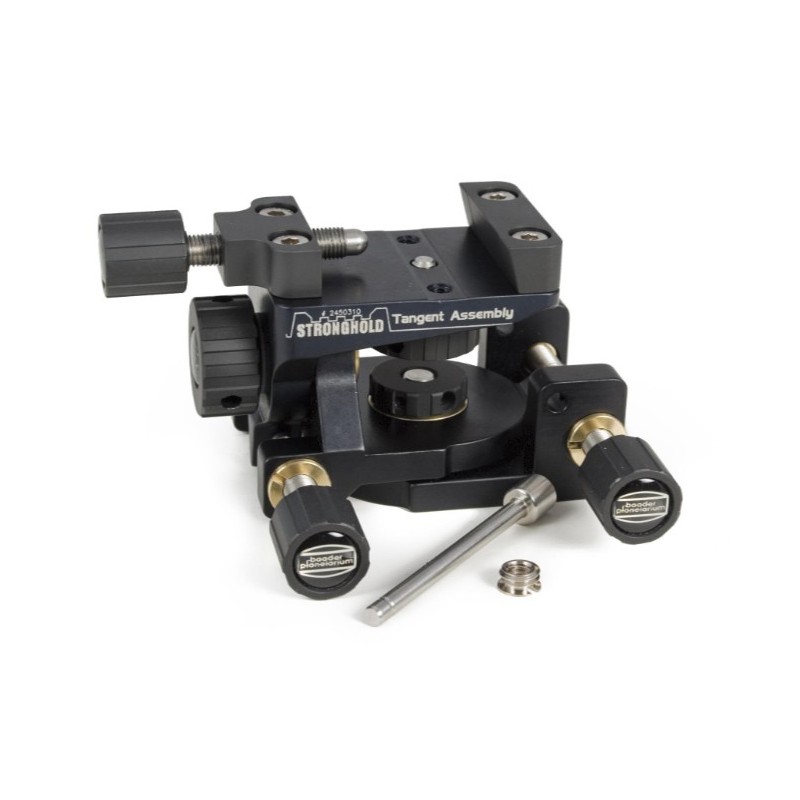

Baader Stronghold Tangent Assembly – Black or Blue

Baader Stronghold Tangent Assembly – Black or Blue

Description
The Baader Stronghold Tangent Assembly is designed to mount and precisely align accessories like guide scopes, finders, or telephoto lenses on your primary telescope. It allows fine adjustment in both azimuth and elevation to achieve perfect parallel alignment.

With a maximum imaging payload of 7 kg, the Stronghold offers numerous mounting options via its threaded holes. It is delivered with a Vixen-style EQ dovetail clamp, which can be mounted either on top or on the base plate.

Available in two versions: black or blue. Please specify the desired color when ordering.

Technical specifications

Product name: Baader Stronghold Tangent Assembly – Black or Blue
SKU: 2450310S
Azimuth adjustment: ± 23°
Elevation adjustment: ± 35°
Net weight: 0.68 kg
Payload capacity: max. 7 kg for imaging
Material: anodized aluminium
Dimensions: 115 mm (length incl. knobs), 128 mm (width incl. knobs), 54 mm (height w/o clamp)
Top mounting options: 1/4" photo thread, 6 x M6 threads
Base mounting options: 1/4" and 3/8" photo threads, 4 x M6 and 4 x M5 threads
Clamp type: Vixen-style dovetail included
Manufacturer: Baader Planetarium
EAN code: 4047825025012
Screws included: Yes
Color options: black or blue (please specify)

Included items

Stronghold Tangent Assembly
Position locking dowel with holder
3/8" to 1/4" reducer
1/4" photo thumb screw (secured by removable O-ring)
Vixen-style EQ dovetail clamp
