Baader ASTF 160 mm OD 5.0 Solar Filter

Baader ASTF 160 mm OD 5.0 Solar Filter

DESCRIPTION

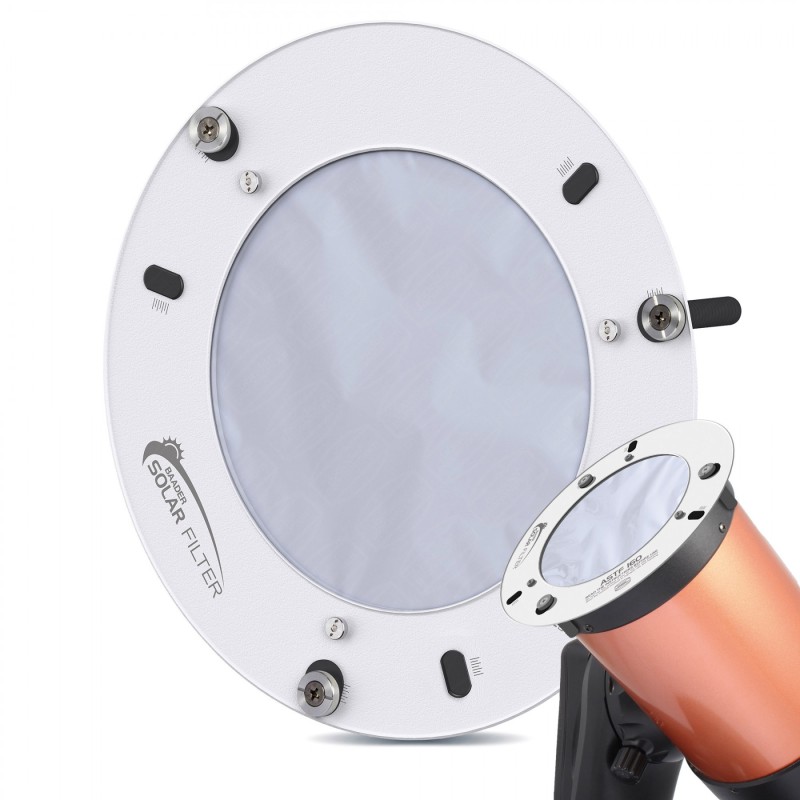

The Baader ASTF 160 mm is a white-light solar filter using AstroSolar Safety Film OD 5.0. It ensures safe and high-contrast observation of the Sun at high magnification. The filter is mounted in a tension-free, thermally compensated aluminum cell, maintaining diffraction-limited image quality.
It includes two sets of centering bolts (10 mm and 20 mm), rubber safety plugs, sliding fasteners, index scales, and three safety Velcro straps. The design prevents image degradation by avoiding stretching of the film, unlike many pre-mounted filters on the market.

TECHNICAL SPECIFICATIONS

• SKU: 2459314

• Manufacturer: Baader Planetarium

• Clear aperture: 160 mm

• Optical density: OD 5.0

• Wavelength: white light

• Material: AstroSolar Safety Film

• Outer diameter: 250 mm

• Inner clamping range (10 mm bolts): 210 – 240 mm

• Inner clamping range (20 mm bolts): 220 – 250 mm

• Outer clamping range (10 mm bolts): 190 – 220 mm

• Outer clamping range (20 mm bolts): 180 – 210 mm

• Weight: 220 g

• Mounting: no-tool required, with brass-centered rubber bolts

• Usage: high magnification solar observation and imaging

• Included: 2 bolt sets (10/20 mm), 3 rubber plugs, 3 safety straps, instructions, storage box
