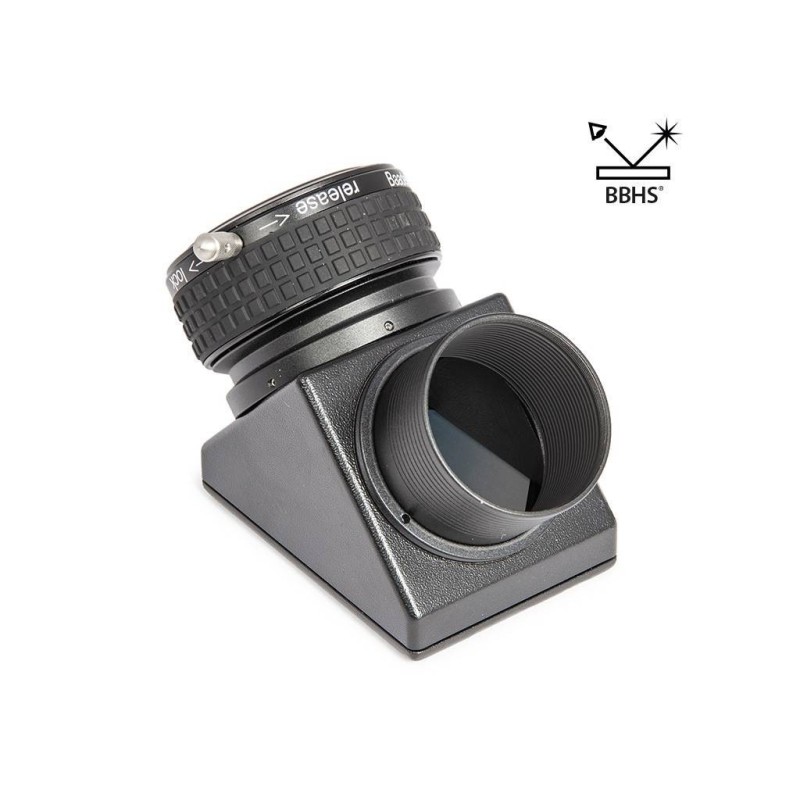

Baader 2" BBHS Mirror Diagonal with ClickLock Clamp

Baader 2" BBHS Mirror Diagonal with ClickLock Clamp

Description:
The Baader 2" BBHS mirror diagonal features a Broadband Hardsilver coating (BBHS) with dielectric overcoating, providing exceptional reflectivity across the 390–2000 nm spectrum. Designed for premium optical performance, this diagonal ensures brilliant, high-contrast images for both observation and photography.

Its 2" ClickLock system allows secure, tool-free eyepiece or camera locking. The diagonal includes a secure 2"/SCT nosepiece (#2408156) with safety kerf to prevent accidental slipping. On the camera side, it offers a standard T-2 thread for direct photographic integration.

Built with Sitall glass substrate, the mirror delivers excellent thermal stability and flatness. The robust black housing makes it suitable for field and observatory setups alike.

Technical specifications:
– Deflection angle: 90°
– Clamping system: 2" ClickLock
– Clear aperture: 47.5 mm
– Optical path length: 112 mm
– Coating: BBHS with dielectric protection
– Telescope connection: M48 / SCT / 2"
– Eyepiece/camera connection: T-2 / M55
– Image: upright but mirror-reversed
– Net weight: 0.45 kg
– Housing: black aluminum

Additional information:
The BBHS Sitall mirror delivers significantly higher brilliance than standard dielectric models. Its ClickLock mechanism ensures secure and effortless usage under all conditions. Ideal for planetary and deep-sky visual or imaging applications requiring maximum optical quality.
