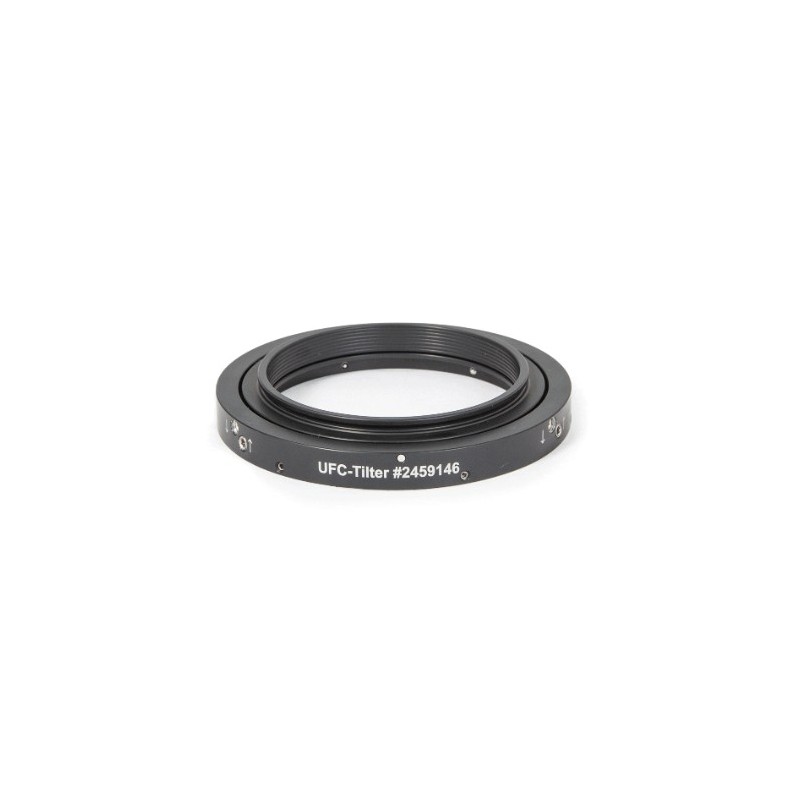

Baader UFC-Tilter (0 to 1 degree image correction)
252.00
Tax included
Baader UFC-Tilter (0 to 1 degree image correction)
Mechanical tilter for camera alignment in UFC systems. Corrects tilt up to 1 degree. Optical height adjustable between 9.75 and 10.50 mm. S70 connections on both sides.
Baader UFC-Tilter (0 to 1 degree image correction)
Description
The Baader UFC-Tilter is a mechanical camera alignment tool designed for use within the Baader UFC system. It allows precise correction of image plane tilt, especially important for large-sensor astrophotography or fast optical systems.
It enables tilt correction from 0 to 1 degree and helps eliminate edge star distortions caused by optical misalignment.
The UFC-Tilter features S70 dovetail connections on both telescope and camera sides, making it compatible with all standard UFC components. Optical height varies between 9.75 and 10.50 mm depending on the amount of tilt applied.
Specifications
| Attribute | Value |
|---|---|
| SKU | 2459146 |
| EAN Code | 4047825045553 |
| Manufacturer | Baader Planetarium |
| Adapter type | Image tilt corrector for UFC |
| System | UFC |
| Telescope interface | S70 |
| Camera interface | S70 |
| Tilt correction range | 0 to 1 degree |
| Optical height | 9.75 to 10.50 mm |
| Outer diameter | 92 mm |
| Net weight | 0.09 kg |
Additional info
Easy installation with S70 connections on both sides.
Fully compatible with Baader UFC filter system.
Made in Germany by Baader Planetarium.
Correcteur d’inclinaison UFC
Specific References
- UPC
- 2459146
Baader UFC-Tilter (0 to 1 degree image correction)
Mechanical tilter for camera alignment in UFC systems. Corrects tilt up to 1 degree. Optical height adjustable between 9.75 and 10.50 mm. S70 connections on both sides.
