Baader levelling support for 10Micron GM 1000 mount

Baader levelling support for 10Micron GM 1000 mount

Description

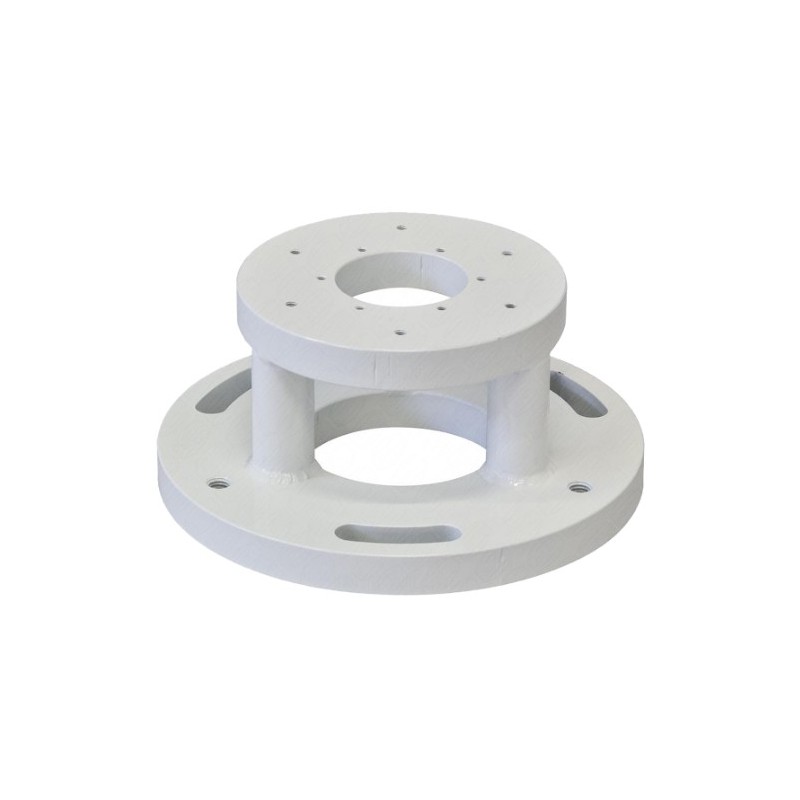

This Baader levelling support allows precise correction of foundation defects and north south alignment errors for the 10Micron GM 1000 mount. Adjustment takes place directly under the mount while maintaining maximum structural stability

It consists of two solid steel plates separated by six rigid spacer bars. The top plate is precision milled and threaded to fit the GM 1000 base. Total height 106 mm

Designed for fixed installations using the Baader BMP steel pier. Ensures accurate mount levelling without introducing flexure

Technical specifications

• Product name Levelling support for 10Micron GM 1000 mount
• SKU 2451187
• EAN code 4047825032058
• Manufacturer Baader Planetarium
• Material Steel
• Net weight 9 kg
• Height 106 mm
• Type Levelling support
• Compatibility 10Micron GM 1000 mount
• Structure Two solid steel plates and six spacers
• Mounting Direct to BMP pillar
• Load capacity According to BMP pier rating

Additional information

• Precise levelling under the mount
• Maintains full mechanical stability
• For 10Micron GM 1000 only
• Use with Baader BMP pillars exclusively
