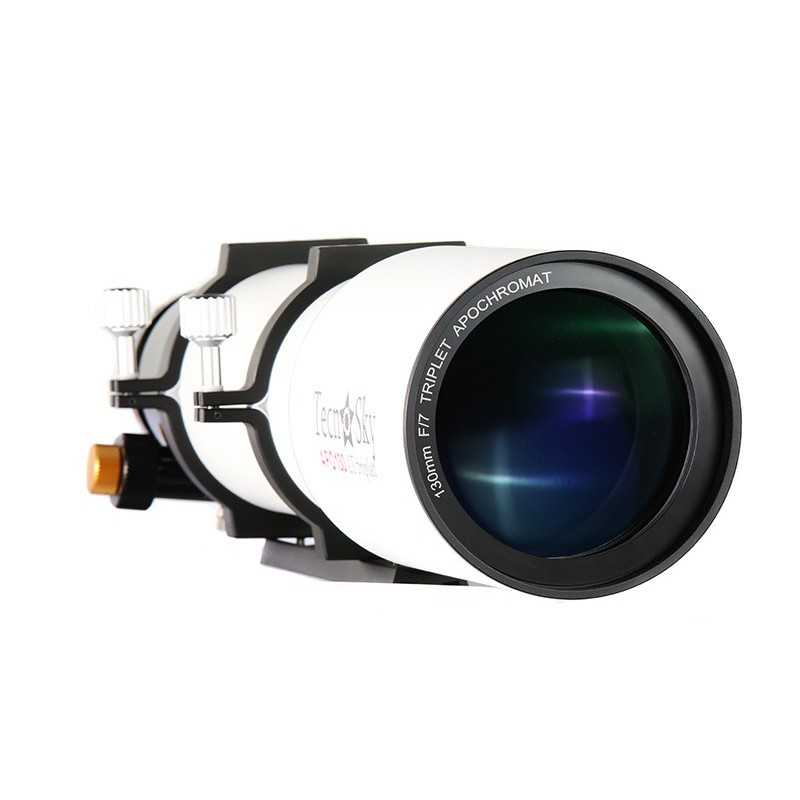

Tecnosky Triplet APO 130/900 LT Refractor

Tecnosky Triplet APO 130/900 LT Refractor

Overview

The Tecnosky Triplet APO 130/900 LT is a high-end apochromatic refractor using a carefully selected triplet combination: FPL-51, Lanthanum, and ED glass. This optical design delivers outstanding chromatic correction, even on bright targets, and is well suited for full-frame astrophotography.

The updated OTA features a more compact and lightweight build, improved thermal stability, and an internally baffled tube for contrast optimization.

At the rear, a massive 3.7" rack-and-pinion focuser with 1:10 micro adjustment and an integrated field rotator can hold up to 7 kg. The back threads (M100x1, M92x1, M68x1) support various flatteners and accessories.

Compatible with Tecnosky 1x, 0.8x, and 0.72x field correctors, it can be adapted for f/7, f/5.5, or f/5 operation, with full-frame coverage.

Technical specifications

• Optical design: Triplet apochromatic refractor

• Aperture: 130 mm

• Focal length: 900 mm

• F-ratio: f/7

• Glass types: FPL-51, Lanthanum, ED

• Focuser: 3.7", rack-and-pinion, 1:10 micro, rotatable

• Rear threads: M100x1, M92x1, M68x1

• Included accessories:

  • CNC rings with handle

  • Vixen-style dovetail bar

  • 2" and 1.25" centering adapters

  • Finder base

  • Foam-padded transport case

• Retractable dew shield

• Weight: 11 kg

• Length: 910 mm

Optical performance

• Visual: Planetary, lunar, and double star resolution

• Imaging:

  • Full-frame compatible with optional flatteners

  • Perfectly suited for high-resolution deep-sky work

  • No visible chromatic aberration

Mount compatibility

Best used with heavy-duty mounts (payload ≥ 11 kg):

• iOptron: CEM70

• 10Micron: GM2000 HPS

• Sky-Watcher: EQ6-R, AZ-EQ6

Key features

• Apochromatic triplet with FPL-51 and Lanthanum

• 3.7" heavy-duty focuser with rotator

• Optional correctors for flexible focal ratios

• Optimized for full-frame astrophotography

• Thermally stable, internally baffled tube
