IRDK12.5 Dall-Kirkham f/8 (1323212I)

IRDK12.5 Dall-Kirkham f/8

Description:

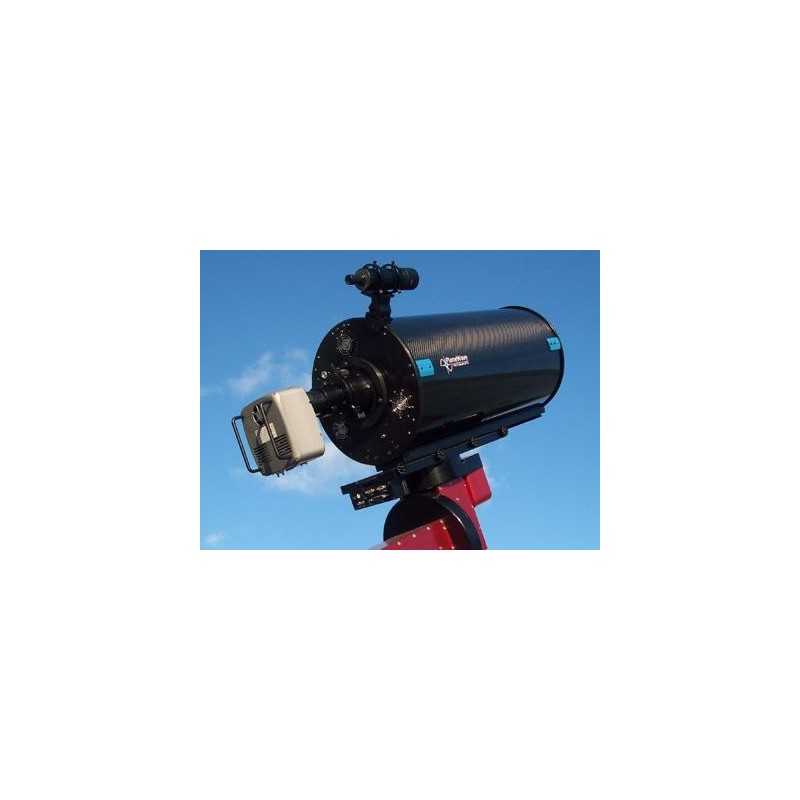

The PlaneWave IRDK12.5 is a 318 mm Dall-Kirkham telescope specifically engineered for infrared or ultraviolet observation. Unlike typical systems, it contains no refractive lenses—only reflective components—resulting in complete chromatic aberration elimination and optimized spectral transmission.

This diffraction-limited system delivers exceptional optical performance over a 20 mm image circle at the focal plane. Its protected gold coatings achieve over 98% reflectivity from 650 nm to 5000 nm, making the IRDK12.5 ideal for IR astronomy, scientific imaging, or LIDAR. UV-enhanced coatings are optionally available.

The optical system features high-purity Fused Silica substrates, chosen for their exceptional thermal and mechanical stability. The OTA includes a 3.5" Hedrick focuser (manual) and is EFA-ready (EFA kit sold separately). A motorized 2.75" focuser option is also available, offering 1.3" of travel and consuming 3" of backfocus (requires #1329012 EFA kit).

Delta-T Ready heating elements are integrated into both primary and secondary mirrors. They require the Delta-T controller #600195 (sold separately), and the wiring is pre-installed at the factory.

Included accessories are a soft cover for the secondary mirror, a full OTA cover, a USB drive with collimation and spacing software, Allen wrench set (Europe only), and a 12V AC adapter.

Technical specifications:

Optical design: Dall-Kirkham
Aperture: 12.5" (318 mm)
Focal length: 2541 mm
F-ratio: f/8
Corrected field: 20 mm (diffraction limited)
Back focus: 10.45" (265 mm) from mounting surface, 7.2" (183 mm) from racked-in focuser
Central obstruction: 39%
Substrate: Fused Silica
Coatings: Protected gold (650 nm to 5000 nm), UV optional
Optical length: 31" (787 mm)
OTA weight: 46 lbs (21 kg)
Focuser: 3.5" Hedrick (manual, EFA-compatible), optional 2.75" motorized (EFA kit #1329012 required)
Mounting: 3" dovetail
Included accessories:

• Soft secondary mirror cover

• OTA tube cover

• Allen wrench set (EU orders only)

• USB flash drive with software

• 12V AC adapter

Built-in Delta-T heating elements (primary and secondary), controller #600195 required (not included)
Shipping crate required: reference #1323512 (charged separately)

Estimated shipping dimensions:
Width: 22" (559 mm)
Height: 29" (737 mm)
Length: 48" (1219 mm)
Gross weight: 163 lbs (73.9 kg)
