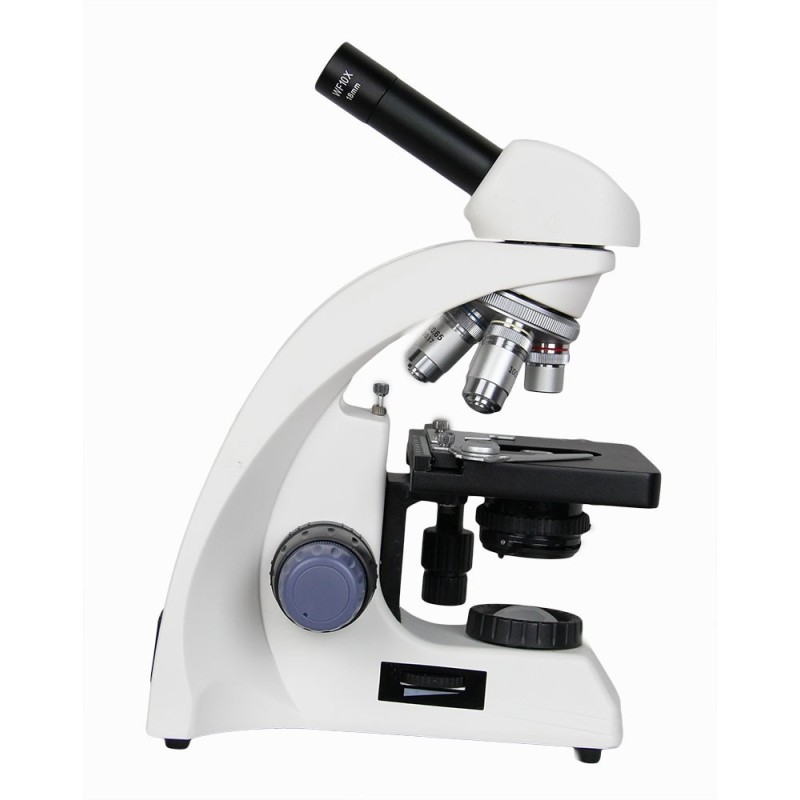

Tecnosky LED biological microscope 1000x

Tecnosky LED biological microscope 1000x

DESCRIPTION
The Tecnosky LED biological microscope combines professional features with an affordable price, making it ideal for students, laboratories and microscopy enthusiasts. It features a modern design, 360° rotatable head inclined at 30°, wide field WA10x eyepiece (18 mm field), and a turret with four planachromatic objectives: 4x, 10x, 40x, and 100x (oil immersion).

An Abbe condenser N.A. 1.25 with iris diaphragm and filter holder provides excellent light control, while the adjustable 3W LED light source ensures bright and even illumination. The mechanical stage offers a 35 × 50 mm movement range, and the fine focus knob provides 0.002 mm precision. This microscope is perfect for educational and professional biological applications.

Red blood cells imaged at 500x with Tecnosky 5mpx camera

Included accessories:

• Microscope

• WA10x eyepiece

• Dust cover

• 220 V power cable

• Immersion oil bottle for 100x objective

FICHE TECHNIQUE

• Type: transmitted light biological microscope

• Head: 360° rotatable, 30° inclined

• Eyepiece: WA 10x (18 mm field)

• Objectives: 4x, 10x, 40x, 100x oil, planachromatic

• Condenser: Abbe N.A. 1.25 with iris diaphragm

• Illumination: adjustable 3W LED

• Stage: 110 × 125 mm, movement 35 × 50 mm

• Focus: coarse and fine, bilateral, 0.002 mm precision, 36 mm focus travel

• Power: 220 V

• Material: metal

• Application: biology, laboratory, education
