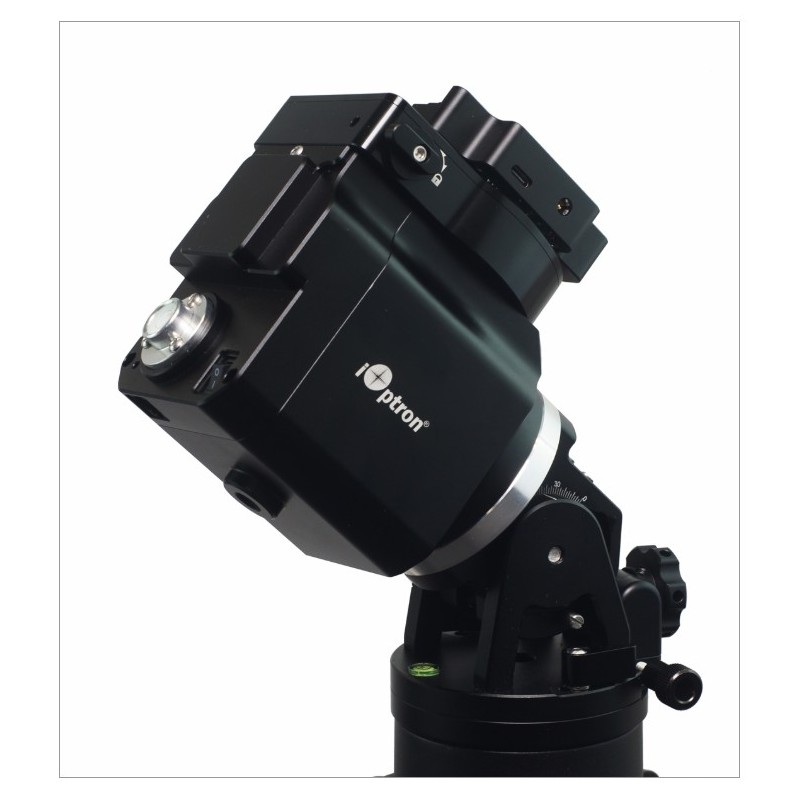

iOptron HAE16C Dual AZ/EQ SWG Mount, head only

iOptron HAE16C Dual AZ/EQ SWG Mount, head only

Description:
The iOptron HAE16C Dual AZ/EQ hybrid mount redefines portability and precision. Featuring a compact 5.7 lbs head and an impressive 18 lbs payload capacity without counterweight, it uses cutting-edge StrainWave harmonic drive on RA and backlash-free worm/belt system on DEC for unparalleled tracking performance.

Its black anodized all-metal CNC body ensures durability and structural integrity. The RA axis includes an electronic friction brake to safely halt the mount during power loss. Dual-axis zero position sensors allow automatic homing and initialization.

The mount includes stationary power and USB-C ports on both base and saddle, reducing cable drag during operation—ideal for mobile imaging setups.

Control is possible via ASCOM/iOptron Commander (Windows), INDI (Linux/MacOS/Raspberry Pi), or mobile apps like iOptron Commander Lite or SkySafari over built-in Wi-Fi. Optional Go2Nova 8411 hand controller and iPolar electronic polar scope expand alignment and GoTo capabilities.

Technical specifications:
– Mount type: Hybrid EQ/AZ mount
– RA drive: StrainWave 14
– DEC drive: Backlash-free worm/belt system
– RA ratio: 360:1
– Max payload w/o CW: 18 lbs (8.2 kg)
– Mount weight: 5.7 lbs (2.6 kg)
– Max payload with CW: 26.5 lbs (12 kg)
– Structure: All metal, casting and CNC machined
– Drive motor: Stepper motor
– Periodic error cycle: 360 sec
– Latitude range: 0° to 90°
– Azimuth adjustment: ±6°
– Polar scope: External iPolar electronic (optional)
– Level: Built-in bubble
– Tracking: Automatic
– Slew speeds: 1× to 512×, max 6°/sec
– Power consumption: 0.6 A tracking, 1 A GoTo
– Power input: DC 12V, 5A
– AC adapter: 100–240V included
– RA brake: Electronic friction brake
– Zero position sensor: Yes on both RA and DEC
– Wi-Fi: Built-in
– Ports: 2x USB + Wi-Fi
– Autoguider: Optional external iGuider
– Firmware upgrade: Yes
– PC control: iOptron Commander, ASCOM, INDI
– Saddle: Vixen-style
– CW shaft: Ø20mm x 200mm, 3/8"-16 (optional #P-SGP-CWS)
– CW: 4.5 lbs (2.5 kg) (optional #3006-05)
– Mounting: 3/8"-16 thread
– Tripod: Optional carbon fiber (#8061A)
– MiniPier: Optional (#8041)
– Leveling MiniPier: Optional for AZ (#8042 with #8061A only)
– Temp range: -20 °C to +40 °C
– Warranty: 2-year limited

Additional information:
The HAE16C is engineered for field astrophotography and mobile observing. Its internal Wi-Fi, firmware updates, and zero-cable motion design offer a seamless experience, especially when paired with INDI-based controllers or ASCOM software.
