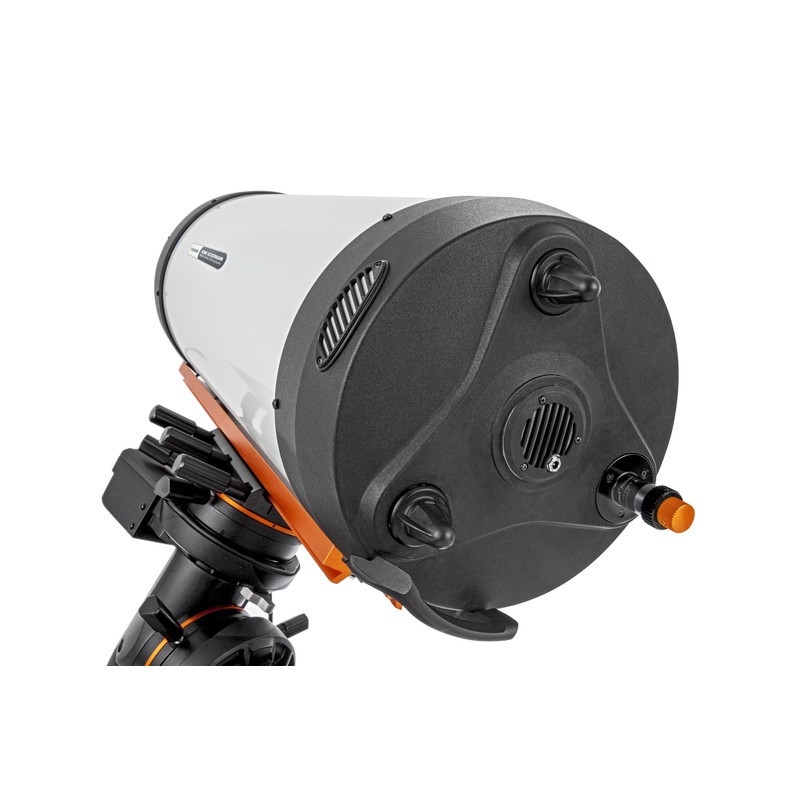

    Celestron RASA 11 on CGX-L Equatorial Mount

    7,599.00
    Tax included

    Celestron RASA 11 on CGX-L Equatorial Mount

    Quantity
    In stock at the supplier. Delivery in Switzerland within two to three business days. For delivery outside Switzerland, please contact us.

    Celestron RASA 11 on CGX-L Equatorial Mount

    DESCRIPTION

    The Celestron RASA 11 is a wide-field astrograph optimized for high-speed deep-sky imaging. It features a 620 mm focal length and a 43.3 mm optimized image circle, suitable for full-frame sensors. Its rare-earth 4-element optical group ensures perfect correction of coma, curvature, and chromatic aberration.

    The Ultra-Stable Focus System with linear ball bearing suppresses image shift and mirror flop. A MagLev fan enhances cooldown with filtered airflow. The system includes M42 and M48 camera adapters and a multicoated optical window.

    The CGX-L equatorial mount supports 75 lbs and features 144 mm worm wheels, dual dovetail saddles (CG-5/CGE), integrated PEC, and remote-friendly design. It supports CPWI, SkyPortal, ASCOM, and is ideal for observatories or mobile dark-sky imaging setups.

    TECHNICAL SPECIFICATIONS

    RASA 11 V2 Optical Tube

    • Optical Design: Rowe-Ackermann Schmidt Astrograph

    • Aperture: 279 mm

    • Focal Length: 620 mm

    • Focal Ratio: f/2.2

    • Central Obstruction: 114 mm (41%)

    • Optimized Image Circle: 43.3 mm (4.0°)

    • Usable Field: 52 mm (4.8°)

    • Rayleigh Resolution: 0.49 arcsec

    • Dawes Resolution: 0.41 arcsec

    • Spot Size RMS: < 4.4 μm

    • Spectral Range: 400 – 700 nm

    • Off-axis Transmission (21 mm): 83%

    • Back Focus with Adapter: 55 mm

    • Back Focus from Threaded Collar: 72.8 mm

    • Optical Window: 68 mm fully multi-coated

    • Focuser: Ultra-Stable Focus System

    • Cooling: MagLev fan, 12V battery included

    • Tube: Aluminum, Ø 330 mm, Length 838 mm

    • Tube Weight: 19.5 kg (43 lbs)

    • Dovetail: CGE (dual position)

    CGX-L Mount

    • Mount Type: Computerized Equatorial GoTo

    • Payload Capacity: 75 lbs (34 kg)

    • Worm Wheels: 144 mm

    • Max Slew Speed: 3°/sec

    • Tracking Rates: Sidereal, Solar, Lunar

    • Alignments: 2-Star, 1-Star, Solar System, Quick Align

    • PEC: Yes

    • Ports: 4 AUX, 2 autoguide (1 near saddle), USB for mount and HC

    • Power Input: 12 V / 3 A

    • Tripod: 70 mm steel, height 838–1397 mm

    • Total Height: 1524–1956 mm

    • Mount Head: 23.8 kg (52.6 lbs)

    • Tripod: 21 kg (46.2 lbs)

    • Counterweights: 2 x 10 kg (22 lbs)

    • Total Weight: 84.2 kg (185.8 lbs)

    Included Items

    • RASA 11 V2 Optical Tube

    • CGX-L Equatorial Mount

    • Steel Tripod

    • 2 x 22 lb Counterweights

    • NexStar+ Hand Control

    • DC Power Cable

    • Camera Adapters (M42 & M48)

    • Counterweight Shaft

    • Allen Key

    • Software: CPWI, Starry Night SE, SkyPortal
