    Baader Heavy Pillar (BHP) – Modal steel pillar with up to 600 kg payload capacity

    2,300.00
    Tax included

    Baader Heavy Pillar (BHP) – Modal steel pillar with up to 600 kg payload capacity

    Conical welded steel pillar, up to 600 kg load capacity, vibration-damping, height 60–165 cm. Only for Baader-supplied mount or observatory projects.

    Quantity
    Special order. Contact us for details or a personalized quote. Shipping in Switzerland and worldwide.

    Baader Heavy Pillar (BHP) – Modal steel pillar with up to 600 kg payload capacity

    Description

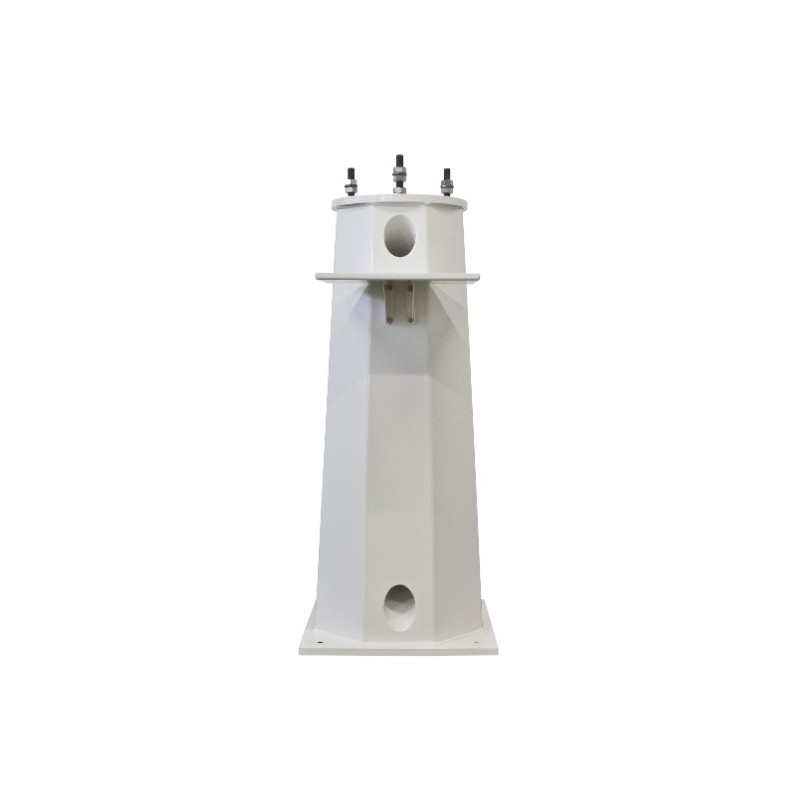

    The Baader Heavy Pillar (BHP) is a robust conical steel column specially designed for permanent installations involving heavy astronomical mounts, such as GM 3000, GM 4000 or PlaneWave L-350.

    Its octagonal welded steel construction ensures optimal rigidity and vibration damping. The base plate measures 500 x 500 mm, and the top plate (240 mm diameter, 25 mm thick) features three M14 threaded bolts and a central hole for optional quartz sand filling on-site.

    The pillar includes a 3-inch internal cable duct and weighs approx. 114 kg for the 60 cm version.

    Available in the following standard heights:
    60 cm / ref. 2451221
    80 cm / ref. 2451222
    100 cm / ref. 2451223
    115 cm / ref. 2451224
    125 cm / ref. 2451225
    135 cm / ref. 2451226
    145 cm / ref. 2451227
    155 cm / ref. 2451228
    165 cm / ref. 2451229

    Please specify your preferred height when ordering.

    Important notes

    Baader’s BHP and BMP steel pillars are exclusively available as part of a complete mount or observatory project purchased from Baader. The listed prices are subsidized. Standalone production of such a complex product would not be economically viable.

    Each pillar is custom-made and typically has a long lead time. It must be anchored into a concrete foundation prepared to Baader’s specifications. A dedicated leveling flange, custom-made for each mount, is required:

    • Leveling flange for GM 3000 – ref. 2451186 (10 cm height)

    • Leveling flange for GM 4000 and PlaneWave L-350 – ref. 2451185 (10 cm height)

    The combined height of pillar and flange should not exceed 175 cm. A consultation is always required prior to order to align with the installation structure.

    Technical specifications

    • Type: conical steel pillar

    • Payload capacity: up to 600 kg

    • Heights: 60 to 165 cm

    • Structure: conical/octagonal

    • Material: welded steel, vibration-damping

    • Bottom plate: 500 x 500 mm

    • Top plate: 240 mm diameter, 25 mm thick, 3x M14 bolts, center hole

    • Internal cable duct: 3" inner width

    • Weight (60 cm version): approx. 114 kg

    • Made to order

    Additional information

    • Only available with Baader mount or observatory projects

    • Leveling flanges mandatory (based on mount type)

    • Long delivery time (custom-made)

    • Optional accessory: shelf (ref. 2451208, 360 x 270 mm)

    Baader Heavy Pillar (BHP) 80 cm

    Specific References

    UPC
    2451220
