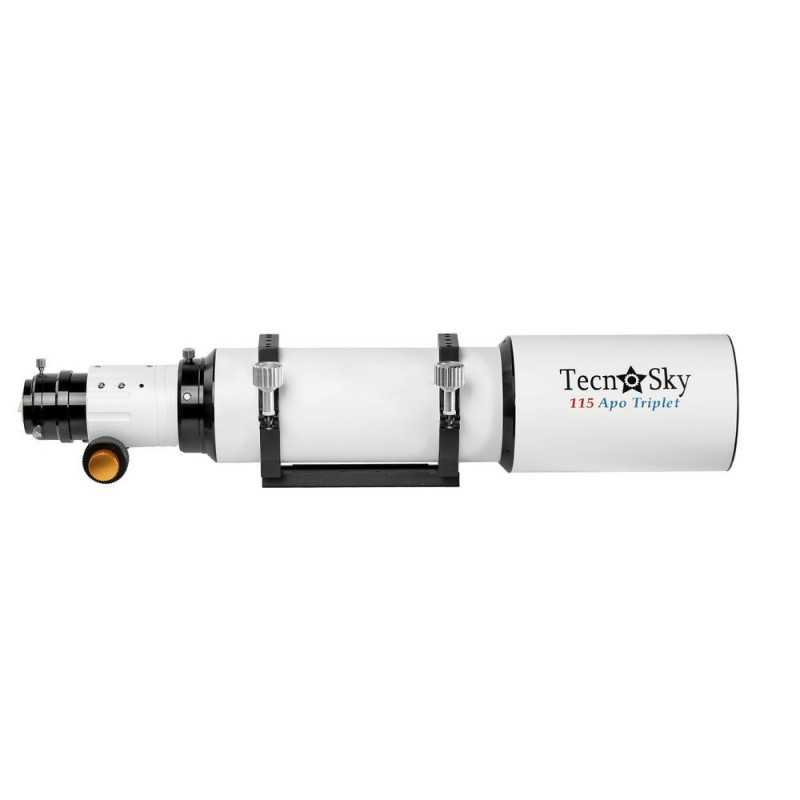

Tecnosky 115/800 V3 Triplet APO Refractor

Tecnosky 115/800 V3 Triplet APO Refractor

Overview

The Tecnosky 115/800 V3 is a high-performance triplet apochromatic refractor designed for deep-sky astrophotography and visual observation. Its air-spaced lens includes Ohara FPL-51 fluorite glass, combined with two high-index elements, offering excellent chromatic correction and contrast.

The redesigned lightweight aluminum tube features internal baffles and a retractable dew shield with lock. It’s paired with a 2.5" rack-and-pinion focuser, providing 80 mm travel and a 1:10 micro reduction—ideal for supporting heavy imaging setups.

The scope is compatible with a 0.8× reducer/corrector for APS-C and full-frame cameras.

Technical specifications

• Optical design: Air-spaced apochromatic triplet

• Aperture: 115 mm

• Focal length: 800 mm

• F-ratio: f/6.95

• Glass: FPL-51 + 2 high-index elements

• Optical coating: Fully Multi-Coated (FMC)

• Focuser: 2.5" rack, 80 mm travel, 1:10 micro knob

• Dew shield: Retractable with locking ring

• Tube: Aluminum with internal baffling

• Included accessories:

  • CNC rings with flat base

  • Vixen-style dovetail bar

  • 2"/1.25" adapter (brass centering)

  • Finder shoe

• Warranty: 2 years

Optical performance

• Excellent planetary and lunar detail

• Flat-field astrophotography with optional 0.8× reducer

• Full-frame sensor support with dedicated correctors

Mount compatibility

Best suited for mounts with ≥8–10 kg photographic capacity:

• iOptron: CEM40, CEM70, GEM45, HAE29, HAE43, HEM44

Key features

• FPL-51 fluorite triplet optics

• Lightweight baffled OTA with retractable dew shield

• Long-travel 2.5" focuser with micro-reduction

• Full-frame corrector compatible

• Excellent for both visual and imaging use
