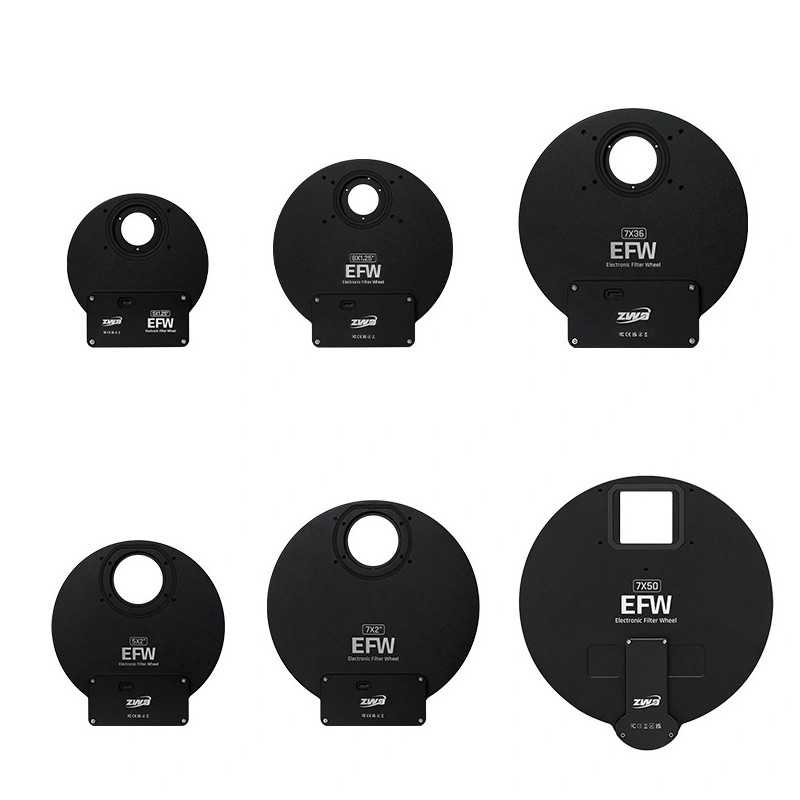

ZWO EFW Mini filter wheel 5x1.25-25
The ZWO EFW 5x1.25-25 is an electronic filter wheel designed for astrophotography. It supports five Ø1.25 inch filters and Ø31 mm filters, features a redesigned structure to reduce light leaks, is powered via USB, and is compatible with ASIAIR, ASIStudio, ASCOM, and the ZWO SDK.
ZWO EFW Mini filter wheel 5x1.25-25
Description
The ZWO EFW 5x1.25-25 is part of the next-generation ZWO electronic filter wheels. Its internal design has been refined to reduce light leakage, which is important for deep-sky imaging.
Within the EFW range, the Ø1.25 inch model is stated to support Ø1.25 inch and Ø31 mm filters. The body is built from CNC-machined aluminum alloy for a compact, rigid, durable structure. The internal carousel is made from 6061 aluminum alloy to ensure stable and reliable rotation.
The filter wheel is powered directly via a single USB connection with no external power supply required. It draws 120 mA at 5 V and connects through a built-in USB-C port using the included USB 2.0 Type-A to Type-C cable. Software support includes ASIAIR, ASIStudio, ASCOM, and the ZWO SDK. The design is presented as plug and play with no driver installation required.
Light-leak protection is achieved through an upgraded sealing interface between covers, added lateral light-blocking pads, and a fully enclosed motor compartment. A high-precision stepper motor ensures smooth, consistent operation during extended imaging sessions. Automated filter switching is supported when used with compatible control software such as ASIAIR.
Technical specifications
Model: EFW 5x1.25-25
Type: electronic filter wheel
Use: astrophotography
Supported filters: 1.25 inch,31 mm
Slots: 5
Power: USB
Current draw: 120 mA
Voltage: 5 V
Port: USB-C
Included cable: USB 2.0 Type-A to Type-C
Body material: CNC-machined aluminum alloy
Carousel material: 6061 aluminum alloy
Motor: high-precision stepper motor
Light protection: sealing,blocking pads,enclosed motor
Software support: ASIAIR,ASIStudio,ASCOM,SDK
Mode: plug and play
ZWO filter compatibility: yes
