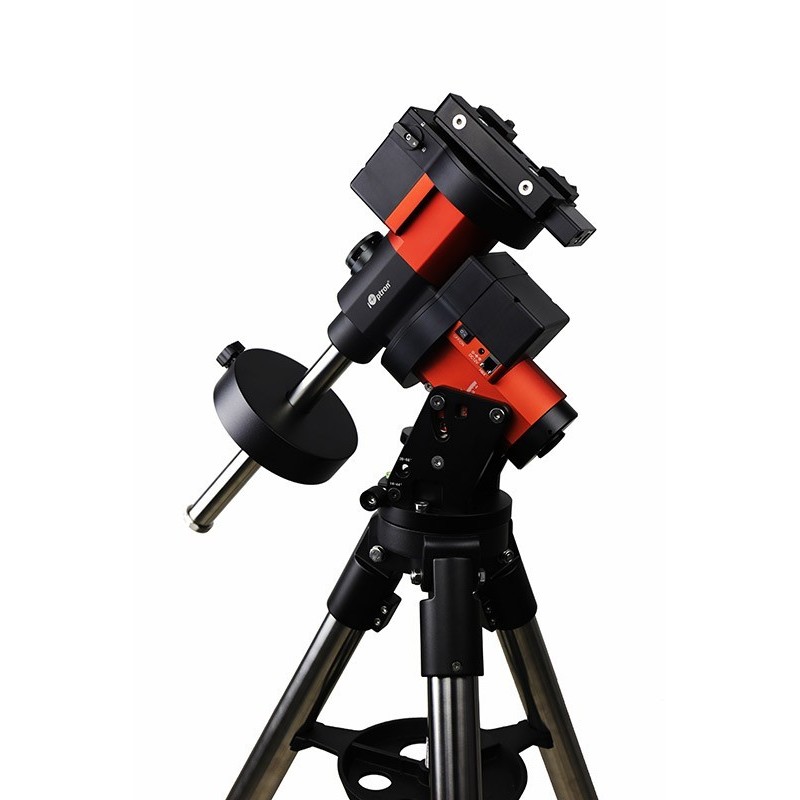

IOPTRON GEM45EC WITH TRIPOD & CASE – HIGH PRECISION ENCODER MOUNT

IOPTRON GEM45EC WITH TRIPOD & CASE – HIGH PRECISION ENCODER MOUNT

DESCRIPTION

The iOptron GEM45EC is a modern German equatorial mount combining compact design, CNC-machined durability, and high-end tracking performance. With a load capacity of 20 kg and a mount weight of only 7.9 kg, it offers an impressive 2.5:1 payload-to-weight ratio.

Equipped with a high-resolution encoder, the GEM45EC delivers ultra-low periodic error (<0.3 arcsec RMS), making it ideal for long-exposure astrophotography. The integrated iPolar electronic polar scope simplifies polar alignment—even when Polaris is not visible. A dual saddle supports both Losmandy and Vixen dovetails, while large, glove-friendly clutch levers ensure easy gear engagement.

The GEM45EC includes internal cable management, precision stepper motors, real-time PEC, GPS, and a Go2Nova hand controller with over 212,000 objects. The included LiteRoc 1.75" stainless steel tripod provides a lightweight yet rigid base. It ships with a 5 kg counterweight, hard case, AC adapter, cables, and a full accessory kit. Wi-Fi control is available with the optional iStarFi adapter.

TECHNICAL SPECIFICATIONS

Mount type: German Equatorial
Max payload (excluding CW): 20 kg (45 lbs)
Mount weight: 7.9 kg (17.5 lbs)
Payload ratio: 2.53
Periodic error: <0.3 arcsec RMS
Encoder: high-resolution
PEC: real-time (RPEC)
Worm gear: Ø17 mm
RA/DEC wheels: Ø110 mm, 216 teeth
RA/DEC axis: Ø45 mm steel
RA/DEC bearings: Ø68 mm
Polar scope: iPolar electronic built-in
Max slew speed: 4.5°/s
Motor: stepper, synchronous belt
Motor resolution: 0.08 arcsec
Hand controller: Go2Nova, 212,000+ object database
Guiding port: ST-4
Ports: USB, GPS built-in, Wi-Fi (optional)
Cable routing: integrated (USB, ST-4, 12V/3A)
Power supply: 12V – 5A (adapter included)
Power draw: 0.6A (tracking) / 0.9A (GOTO)
Tripod: LiteRoc 1.75" stainless steel (~8 kg)
Counterweight: 1 × 5 kg, shaft Ø28 mm
Latitude range: 14° – 68°
Meridian handling: stop or flip
Zero position: automatic
Dovetail: dual Losmandy & Vixen (6")
Operating temp: -10 °C to +40 °C
Hard case: included
Warranty: 2 years
