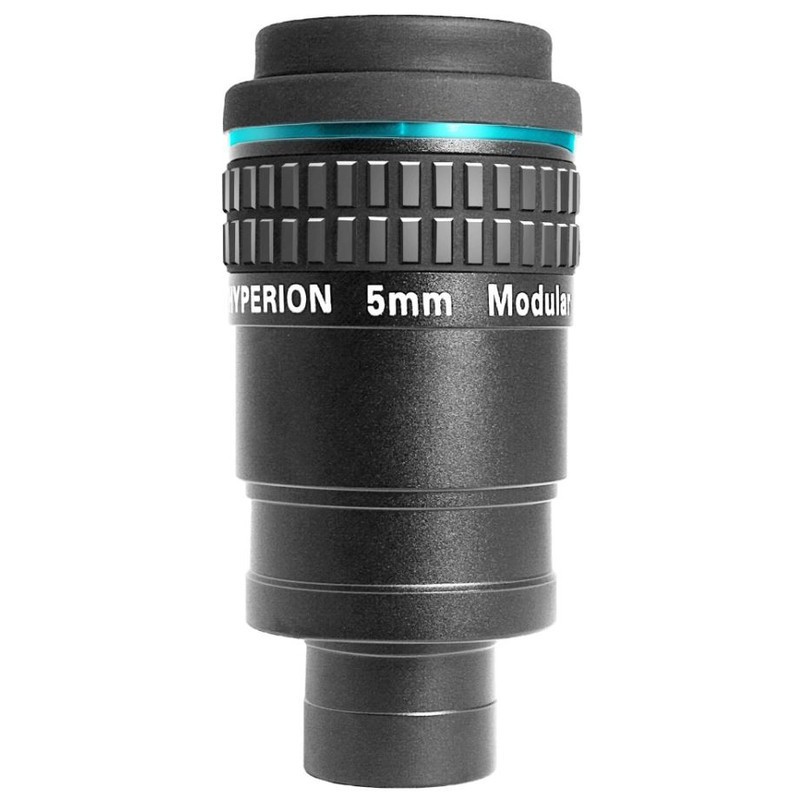

Baader Hyperion 5 mm 68° Modular Eyepiece

Baader Hyperion 5 mm 68° Modular Eyepiece

DESCRIPTION

The Baader Hyperion 5 mm 68° modular eyepiece is designed for excellent performance at high magnification, delivering sharp and comfortable views with a generous 20 mm eye relief. With an apparent field of 68°, it’s suitable for planetary and lunar observation, or detailed deep-sky targets.

Its modular design includes M43 and SP54 threads on the eye side for camera and accessory adaptation. T2 adaptation is possible via the M43/T-2 ring, and digital cameras with fixed lenses can be mounted using the SP54 thread. It is also compatible with Zeiss Diascope spotting scopes using the Baader 2454500 adapter.

Fine-tuning of the focal length is possible using optional 14 mm and 28 mm extension rings. Standard 1¼" astronomical filters can be mounted directly into the barrel. The optional Stop Ring (#2958097) allows repeated insertion with perfect focus in 2" focusers.

The eyepiece features 8 lenses in 5 groups, multi-coated with Baader’s Phantom Group Coating®. Delivered with protective caps, folding eyecup, and a leatherette pouch.

TECHNICAL SPECIFICATIONS

• Manufacturer: Baader Planetarium

• Series: Hyperion

• Focal length: 5 mm

• Apparent field of view: 68°

• Eye relief: 20 mm

• Net weight: 0.42 kg

• Coating: Phantom Coating® Group

• Optical design: modular, 8 elements in 5 groups

• Included barrels: 1¼" (31.75 mm) and 2" (50.8 mm)

• Camera threads: M43, SP54

• Internal threads: M28.5, M48

• Outer thread (eye side): M43

• Filter thread: yes, for 1¼"

• Diascope compatible: yes (with 2454500 adapter)

• Included accessories:

  • 1¼" and 2" dustcaps

  • Folding eyecup (M43)

  • Soft leather bag

• Eyepiece height above reference: 80.1 mm

• Field stop diameter: 5.9 mm

• Field stop displacement: -23.5 mm

• 1¼" barrel length: 24 mm

• 2" barrel length: 47.5 mm

• Slip protect safety: classic undercut
