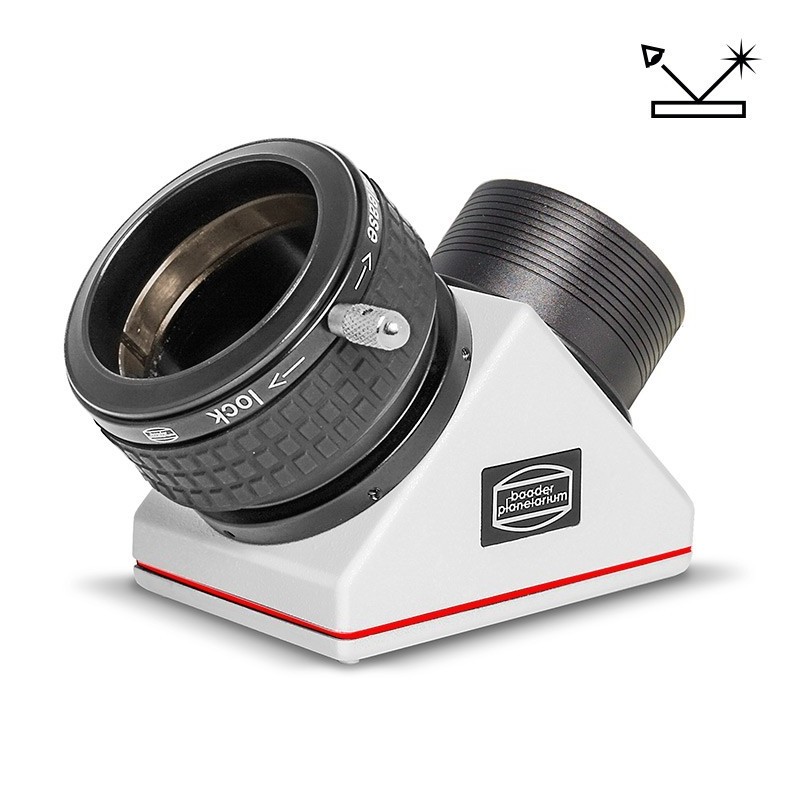

Baader 2" Diagonal Mirror with ClickLock

Baader 2" Diagonal Mirror with ClickLock

Description:
The Baader 2" diagonal mirror with ClickLock clamping offers top-level optical and mechanical performance. It features a true 1/10 wave dielectric-coated mirror that delivers maximum reflectivity across the visible spectrum, while repelling harmful UV and IR radiation. This ensures safe use during solar observation with appropriate White-Light or H-alpha filters.

Its scratch-resistant surface allows safe cleaning, even under tough field conditions. The optical nosepiece is removable and includes M48 threads on both ends, allowing full-frame field illumination.

The 2" ClickLock system enables effortless, tool-free securing of even the heaviest accessories, ensuring tight alignment with just a quick turn of the hand.

Technical specifications:
– Diameter: 2" (50.8 mm)
– Surface: dielectric mirror, 1/10 wave accuracy
– Optical path length: 112 mm
– Coating: UV and IR rejection
– Mirror finish: scratch-resistant coating
– Clamping system: 2" ClickLock
– Nosepiece: removable, M48 threaded with safety kerf
– Threads: M48 female / SCT 2"
– Deflection angle: 90°
– Image orientation: erect image, mirrored left-right
– Clear aperture: 46.6 mm
– Weight: 0.48 kg

Additional information:
Fully compatible with all 2" eyepieces and accessories. Ideal for visual and planetary applications with wide-field setups.
