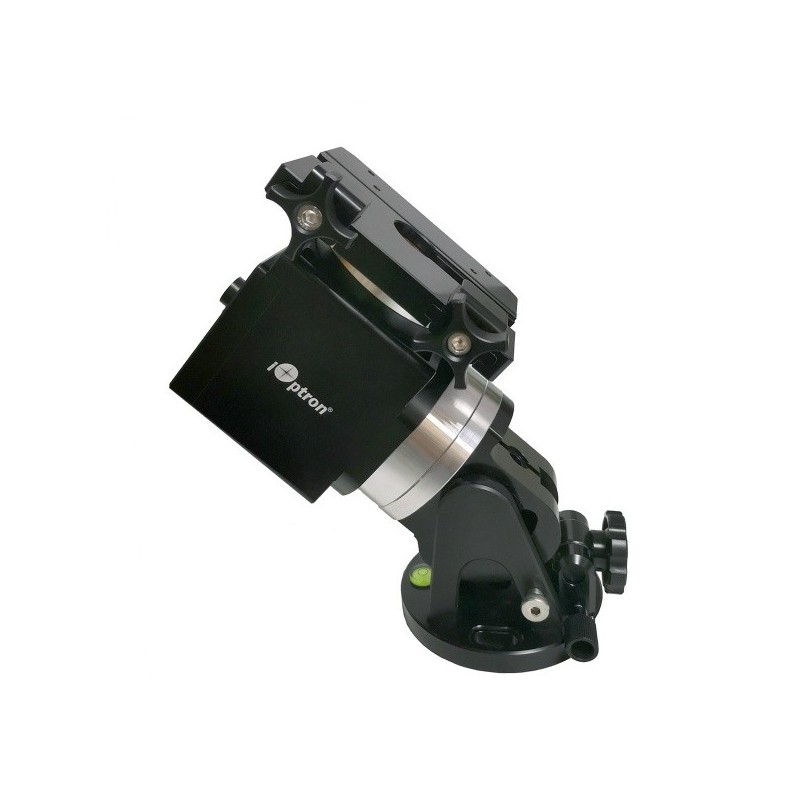

iOptron HAE29C AZ/EQ dual SWG with iPolar and Hand Controller (Ref. HE292C)

iOptron HAE29C AZ/EQ dual SWG with iPolar and Hand Controller (Ref. HE292C)

Description:
The HAE29C is a lightweight yet capable mount for astronomers on the move. This version includes the iPolar electronic polar scope and the Go2Nova® 8411 hand controller, making it a ready-to-use system with high convenience and flexibility.

Strain wave gear drives on both axes ensure smooth and backlash-free motion. At just 3.7 kg including the dovetail saddle, the mount supports up to 13.5 kg without counterweights. Wi-Fi and USB ports are built-in, allowing control via PC or mobile app. ST-4 guiding port and automatic zero position search are standard.

Unlike the EC version, this model does not include a high-resolution RA encoder, but still offers reliable GoTo tracking. The iPolar unit allows accurate polar alignment without optical finders, and the Go2Nova® controller provides intuitive access to a large object database.

Technical specifications:

• Mount: Strain Wave Altazimuth / Equatorial Mount

• RA gear system: Strain Wave Gear

• DEC gear system: Strain Wave Gear

• Reduction ratio: RA 480:1, DEC 360:1

• Payload w/o CW: 29.7 lbs (13.5 kg)

• Mount weight: 8.15 lbs (3.7 kg with dovetail saddle)

• Payload / Mount weight: 3.65

• Payload with CW*: 40 lbs (18 kg)

• Period: 360 second

• PE: < 36 arcsec (< ± 18 arcsec)

• Drive motor: Stepper motor

• Structure Material: All metal, CNC machined

• Exterior finish: Anodized black

• Level indicator: Level bubble

• Control system: GOTONOVA / Commander

• Handset: Go2Nova® 8411 included

• Tracking: Automatic

• Maximum slew speed: 6°/sec

• Power consumption: 0.6A (Tracking), 1A (GOTO)

• Power: DC12V–5A (5.5/2.1mm DC plug)

• AC adapter: 100V ~ 240V (included, indoor use only)

• Power off brake: Electronic friction brake

• Wi-Fi: Built-in

• Communication port: Yes (Wi-Fi and USB)

• Autoguide port: Yes (ST–4 compatible)

• Firmware upgrade: Yes

• Dovetail saddle: Vixen & Losmandy

• Tripod: Optional

• Counterweight Shaft: SS Ø20x200mm, 3/8"-16 thread (Optional)

• Counterweight: 10 lbs (4.5 kg) (Optional)

• Operating temperature: –20°C ~ +45°C

• Warranty: Two year limited

Additional information:
The combination of iPolar and Go2Nova® makes this mount ideal for field use without a computer. Polar alignment is assisted via software and can also be performed using the built-in Polar Align routine. Suitable for refractors up to 115 mm aperture or compact reflectors within payload limits. Compatible with MiniPier, Tri-Pier, and LiteRoc tripods.
