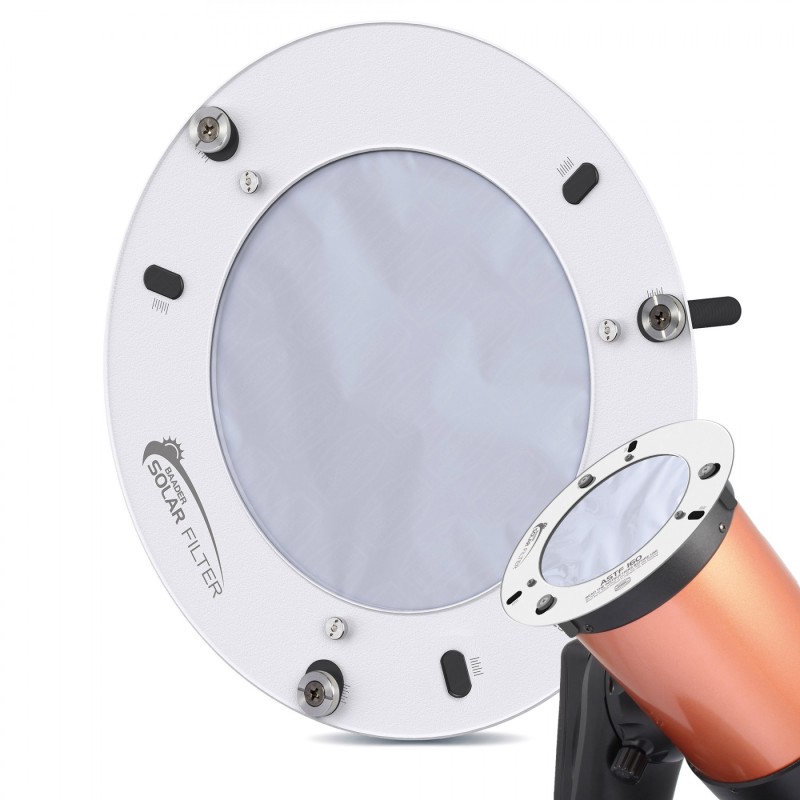

Baader ASTF 100 mm OD 5.0 Solar Filter

Baader ASTF 100 mm OD 5.0 Solar Filter

DESCRIPTION

The Baader ASTF 100 mm OD 5.0 solar filter is engineered for precise solar viewing with high-end optical instruments. It incorporates the original AstroSolar Safety Film OD 5.0, mounted without stress in a temperature-compensated cell. The film maintains its optical performance in temperatures from -30°C to +50°C.
The structure includes a floating injection-molded film carrier ring, held by a fiber-reinforced plastic ring, inside an aluminum frame with non-rotating metal sliders. Three centering bolts allow tool-free adjustment on the telescope tube or dew shield.
Three safety straps with Velcro pads ensure secure mounting in all conditions. The filter delivers diffraction-limited quality, even at high magnification, by preserving the plan-optical precision of the film.
Supplied ready to use, with complete mounting accessories and a rigid transport box.

TECHNICAL DATA

• Manufacturer: Baader Planetarium

• Product code: 2459311

• EAN: 4047825033000

• Net weight: 0.16 kg

• Filter material: Baader AstroSolar Safety Film OD 5.0

• Optical density: 5.0

• Wavelength: white light (full spectrum)

• Mounted: yes

• Clear aperture: 100 mm

• Filter diameter: 100 mm

• Outer cell diameter: 190 mm

• Inner clamping range (10 mm bolts): 150 – 180 mm

• Inner clamping range (20 mm bolts): 160 – 190 mm

• Outer clamping range (10 mm bolts): 130 – 160 mm

• Outer clamping range (20 mm bolts): 120 – 150 mm

• Cell structure: aluminum body, injection-molded carrier, fiber-reinforced retainer

• Fastening system: brass centering bolts, indexed sliders, Velcro safety straps

• Use: solar viewing and imaging at high magnification
